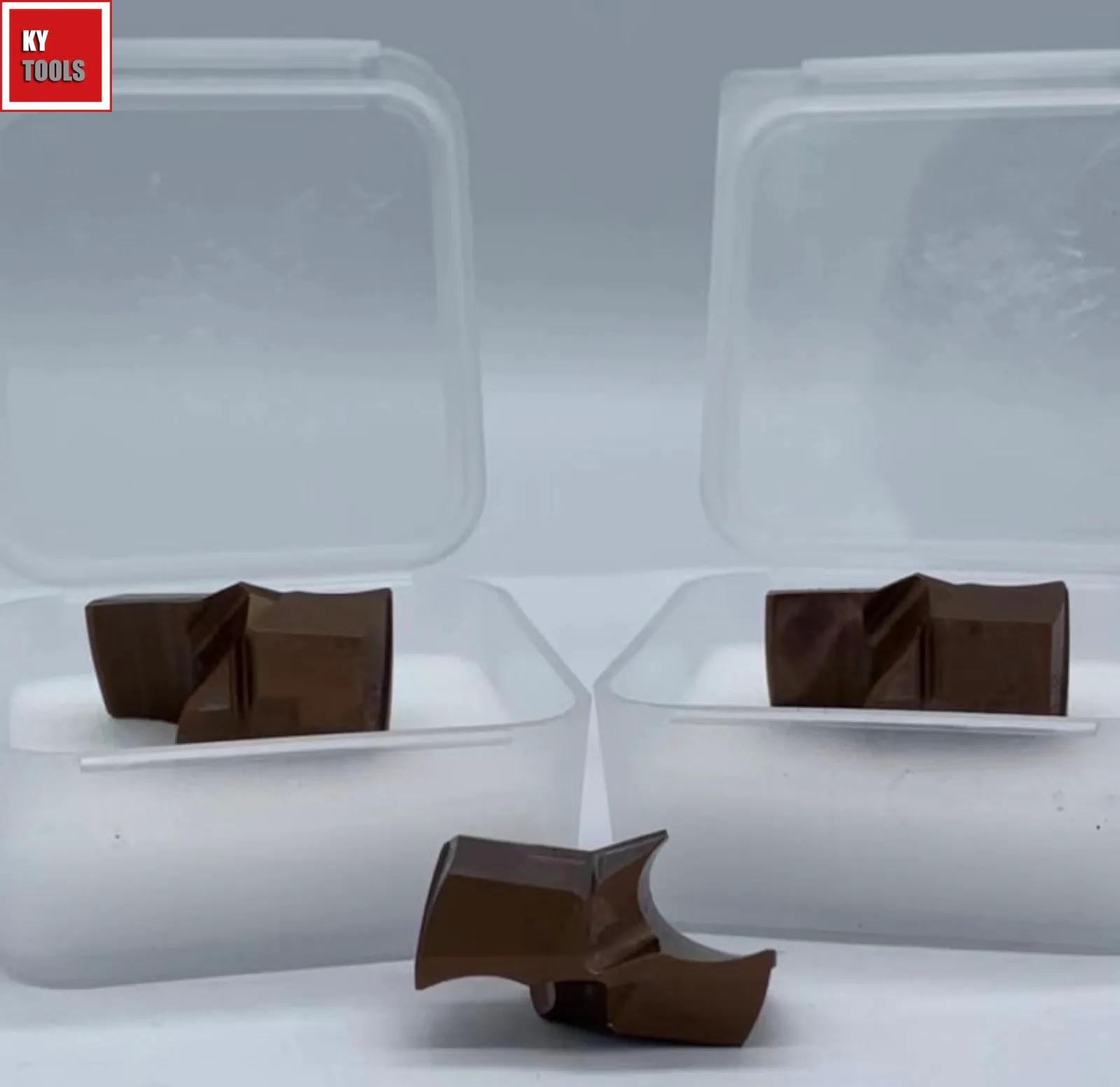

ACTUAL PRODUCT PHOTOS
Real drills. Up close.
Explore actual KYTOOLS drills, from cutting-edge details to protective packaging. Photographs from our drill range.
01 / 10
Explore Modular Drills
Choose a subfamily to view its features, dimensions and ordering details.

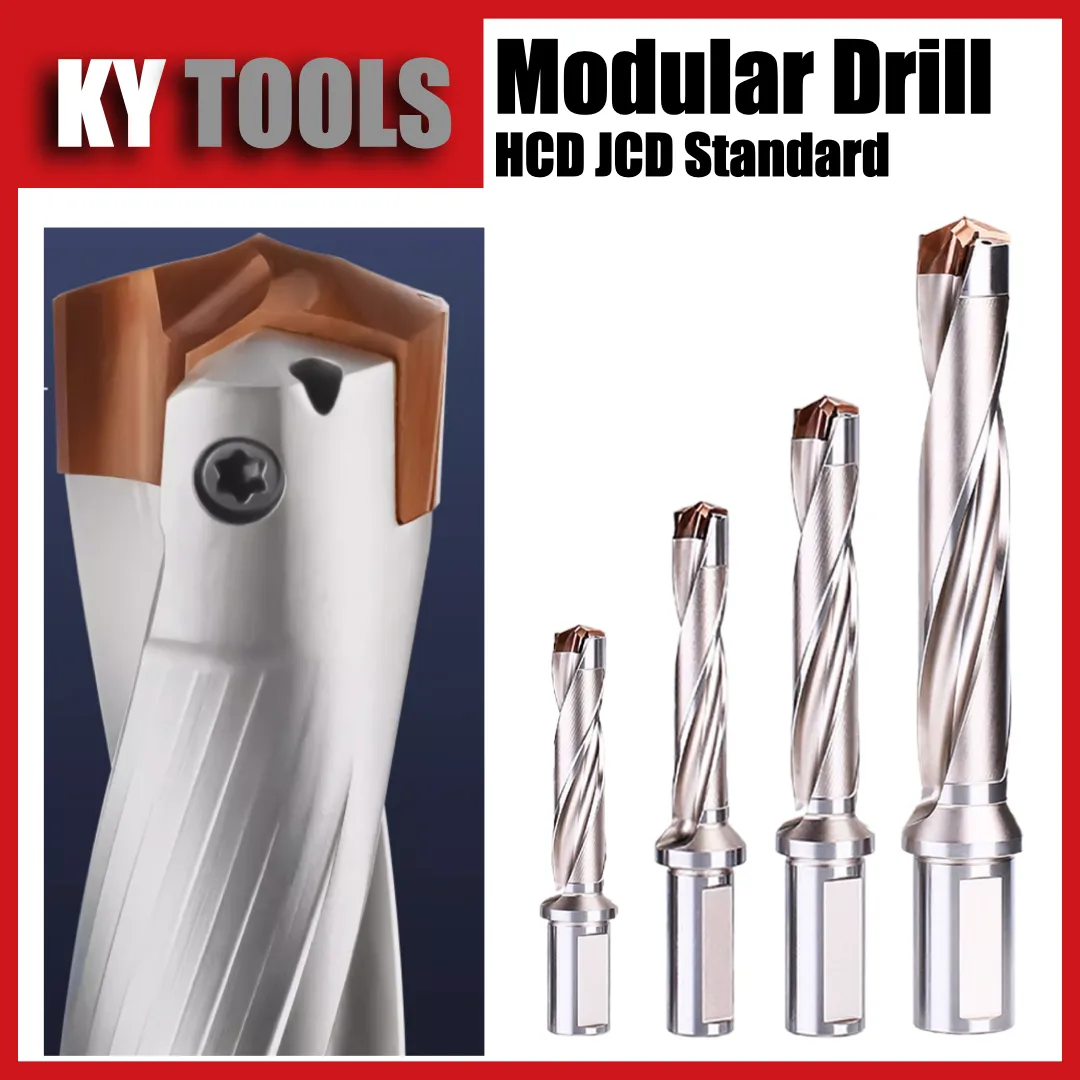

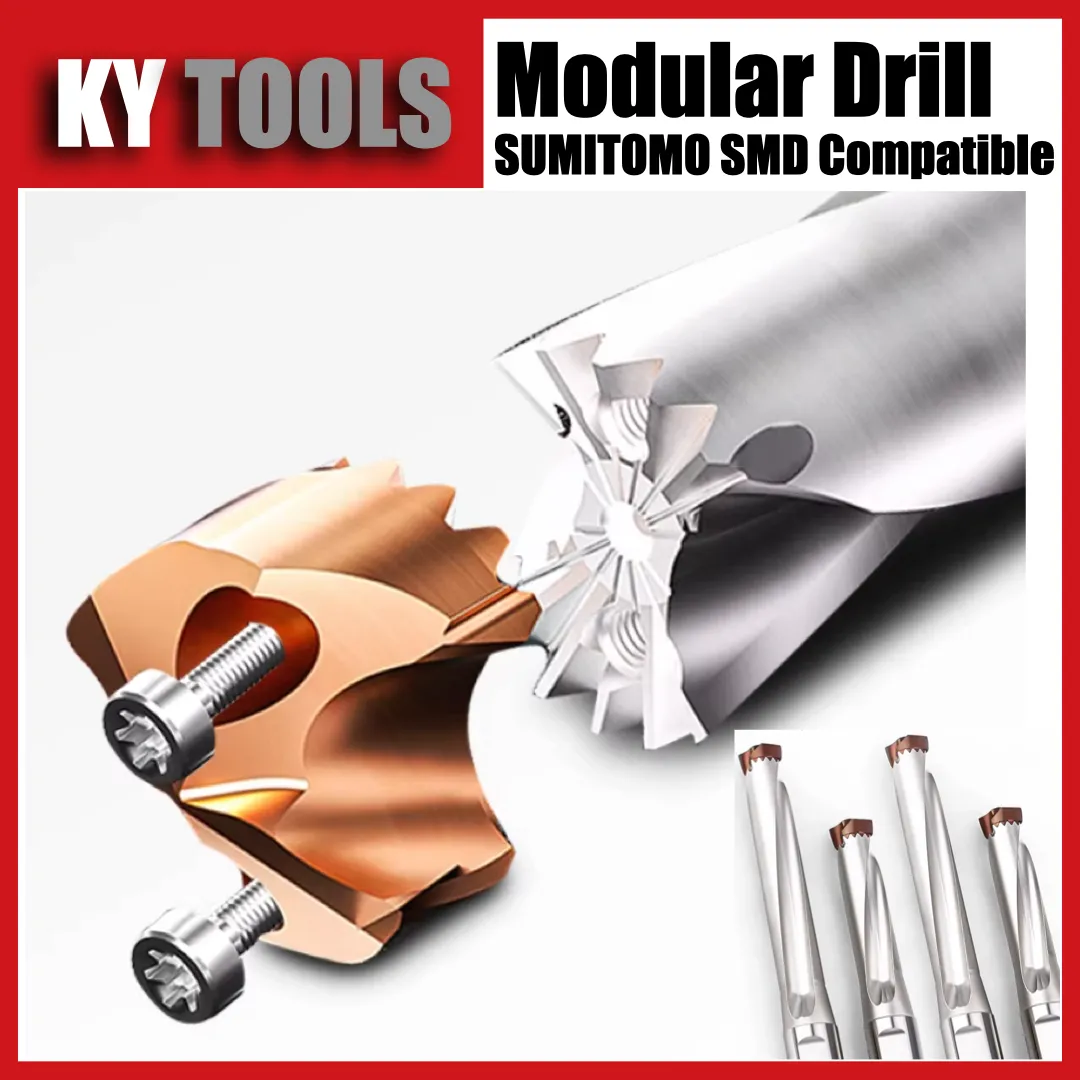

Replaceable Carbide Heads
HCD replaceable drill heads, Ø10–32 mm. Select the printed head part number and match the head with the modular drill body.
View specifications →
3D Drill Bodies
3×D modular drill bodies in the Ø10–31 mm nominal body program. Compare the head diameter range, shank and tool lengths in the catalog table.
View specifications →
5D Drill Bodies
5×D modular drill bodies in the Ø10–31 mm nominal body program. Compare the head diameter range, shank and tool lengths in the catalog table.
View specifications →
8D Drill Bodies
8×D modular drill bodies in the Ø10–31 mm nominal body program. Compare the head diameter range, shank and tool lengths in the catalog table.
View specifications →
10D Drill Bodies
10×D modular drill bodies in the Ø10–31 mm nominal body program. Compare the head diameter range, shank and tool lengths in the catalog table.
View specifications →REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズINDEX
Catalog Contents样册目录カタログ目次
Modular drilling system · Metric size program模块式钻削系统 · 公制规格ヘッド交換式ドリルシステム・メートルサイズ
Drill heads: Ø10-32 mm · Drill bodies: 3D / 5D / 8D / 10D刀片：Ø10-32 mm · 刀杆：3D / 5D / 8D / 10Dヘッド：Ø10-32 mm・ボディ：3D / 5D / 8D / 10D
| Product / section产品 / 章节製品 / 章 | Size range规格范围サイズ範囲 | Page页码ページ |
|---|---|---|
| HCD 100-155Replaceable drill heads可换式钻头刀片交換式ドリルヘッド | Ø10-15.5 mmDiameter increments: 0.1 mm直径间隔：0.1 mm径の刻み：0.1 mm | 02 |
| HCD 156-211Replaceable drill heads可换式钻头刀片交換式ドリルヘッド | Ø15.6-21.1 mmDiameter increments: 0.1 mm直径间隔：0.1 mm径の刻み：0.1 mm | 03 |
| HCD 212-267Replaceable drill heads可换式钻头刀片交換式ドリルヘッド | Ø21.2-26.7 mmDiameter increments: 0.1 mm直径间隔：0.1 mm径の刻み：0.1 mm | 04 |
| HCD 268-320Replaceable drill heads可换式钻头刀片交換式ドリルヘッド | Ø26.8-32 mmDiameter increments: 0.1 mm直径间隔：0.1 mm径の刻み：0.1 mm | 05 |
| HCDRecommended cutting conditions推荐切削参数推奨切削条件 | Ø10-32 mmISO P / M | 06 |
| 3DModular drill bodies模块式钻头刀杆ヘッド交換式ドリルボディ | D Ø10-31 mmL1 30-93 mm · 3×D | 07 |
| 5DModular drill bodies模块式钻头刀杆ヘッド交換式ドリルボディ | D Ø10-31 mmL1 50-155 mm · 5×D | 08 |
| 8DModular drill bodies模块式钻头刀杆ヘッド交換式ドリルボディ | D Ø10-31 mmL1 80-248 mm · 8×D | 09 |
| 10DModular drill bodies模块式钻头刀杆ヘッド交換式ドリルボディ | D Ø10-31 mmL1 100-310 mm · 10×D | 10 |
D: nominal drill body diameter · L1: working length. Select a head within the insert range specified for the body.D：刀杆公称钻径 · L1：有效长度。刀片直径按对应刀杆表内的刀片范围选择。D：ボディ呼び径・L1：有効長。ヘッド径は各ボディの対応径範囲から選択してください。
REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズHCD
Replaceable Drill Heads可换式钻头刀片交換式ドリルヘッド
HCD · Ø10-15.5 mmHCD · Ø10-15.5 mmHCD・Ø10-15.5 mm
SUITABLE WORKPIECE MATERIALS适合加工材料適用被削材
PSteel钢鋼
MStainless steel不锈钢ステンレス鋼
| Part No.规格型号型番 | D直径直径 | d连接径接続径 | a°顶角先端角 |
|---|---|---|---|
| HCD 100 | 10 | 3 | 138° |
| HCD 101 | 10.1 | 3 | 138° |
| HCD 102 | 10.2 | 3 | 138° |
| HCD 103 | 10.3 | 3 | 138° |
| HCD 104 | 10.4 | 3 | 138° |
| HCD 105 | 10.5 | 3 | 138° |
| HCD 106 | 10.6 | 3 | 138° |
| HCD 107 | 10.7 | 3 | 138° |
| HCD 108 | 10.8 | 3 | 138° |
| HCD 109 | 10.9 | 3 | 138° |
| HCD 110 | 11 | 3 | 138° |
| HCD 111 | 11.1 | 3 | 138° |
| HCD 112 | 11.2 | 3 | 138° |
| HCD 113 | 11.3 | 3 | 138° |
| HCD 114 | 11.4 | 3 | 138° |
| HCD 115 | 11.5 | 3 | 138° |
| HCD 116 | 11.6 | 3 | 138° |
| HCD 117 | 11.7 | 3 | 138° |
| HCD 118 | 11.8 | 3 | 138° |
| HCD 119 | 11.9 | 3 | 138° |
| HCD 120 | 12 | 3 | 140° |
| HCD 121 | 12.1 | 3 | 140° |
| HCD 122 | 12.2 | 3 | 140° |
| HCD 123 | 12.3 | 3 | 140° |
| HCD 124 | 12.4 | 3 | 140° |
| HCD 125 | 12.5 | 3 | 140° |
| HCD 126 | 12.6 | 3 | 140° |
| HCD 127 | 12.7 | 3 | 140° |
| Part No.规格型号型番 | D直径直径 | d连接径接続径 | a°顶角先端角 |
|---|---|---|---|
| HCD 128 | 12.8 | 3 | 140° |
| HCD 129 | 12.9 | 3 | 140° |
| HCD 130 | 13 | 3.5 | 140° |
| HCD 131 | 13.1 | 3.5 | 140° |
| HCD 132 | 13.2 | 3.5 | 140° |
| HCD 133 | 13.3 | 3.5 | 140° |
| HCD 134 | 13.4 | 3.5 | 140° |
| HCD 135 | 13.5 | 3.5 | 140° |
| HCD 136 | 13.6 | 3.5 | 140° |
| HCD 137 | 13.7 | 3.5 | 140° |
| HCD 138 | 13.8 | 3.5 | 140° |
| HCD 139 | 13.9 | 3.5 | 140° |
| HCD 140 | 14 | 3.5 | 140° |
| HCD 141 | 14.1 | 3.5 | 140° |
| HCD 142 | 14.2 | 3.5 | 140° |
| HCD 143 | 14.3 | 3.5 | 140° |
| HCD 144 | 14.4 | 3.5 | 140° |
| HCD 145 | 14.5 | 3.5 | 140° |
| HCD 146 | 14.6 | 3.5 | 140° |
| HCD 147 | 14.7 | 3.5 | 140° |
| HCD 148 | 14.8 | 3.5 | 140° |
| HCD 149 | 14.9 | 3.5 | 140° |
| HCD 150 | 15 | 3.5 | 140° |
| HCD 151 | 15.1 | 3.5 | 140° |
| HCD 152 | 15.2 | 3.5 | 140° |
| HCD 153 | 15.3 | 3.5 | 140° |
| HCD 154 | 15.4 | 3.5 | 140° |
| HCD 155 | 15.5 | 3.5 | 140° |
DRAWING NOTATION技术图尺寸标注図面記号D: cutting diameter · d: connection diameter · a: point angleD：切削直径 · d：连接直径 · a：顶角D：切削径・d：接続径・a：先端角
REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズHCD
Replaceable Drill Heads可换式钻头刀片交換式ドリルヘッド
HCD · Ø15.6-21.1 mmHCD · Ø15.6-21.1 mmHCD・Ø15.6-21.1 mm
SUITABLE WORKPIECE MATERIALS适合加工材料適用被削材
PSteel钢鋼
MStainless steel不锈钢ステンレス鋼
| Part No.规格型号型番 | D直径直径 | d连接径接続径 | a°顶角先端角 |
|---|---|---|---|
| HCD 156 | 15.6 | 3.5 | 140° |
| HCD 157 | 15.7 | 3.5 | 140° |
| HCD 158 | 15.8 | 3.5 | 140° |
| HCD 159 | 15.9 | 3.5 | 140° |
| HCD 160 | 16 | 4.2 | 140° |
| HCD 161 | 16.1 | 4.2 | 140° |
| HCD 162 | 16.2 | 4.2 | 140° |
| HCD 163 | 16.3 | 4.2 | 140° |
| HCD 164 | 16.4 | 4.2 | 140° |
| HCD 165 | 16.5 | 4.2 | 140° |
| HCD 166 | 16.6 | 4.2 | 140° |
| HCD 167 | 16.7 | 4.2 | 140° |
| HCD 168 | 16.8 | 4.2 | 140° |
| HCD 169 | 16.9 | 4.2 | 140° |
| HCD 170 | 17 | 4.2 | 140° |
| HCD 171 | 17.1 | 4.2 | 140° |
| HCD 172 | 17.2 | 4.2 | 140° |
| HCD 173 | 17.3 | 4.2 | 140° |
| HCD 174 | 17.4 | 4.2 | 140° |
| HCD 175 | 17.5 | 4.2 | 140° |
| HCD 176 | 17.6 | 4.2 | 140° |
| HCD 177 | 17.7 | 4.2 | 140° |
| HCD 178 | 17.8 | 4.2 | 140° |
| HCD 179 | 17.9 | 4.2 | 140° |
| HCD 180 | 18 | 4.5 | 140° |
| HCD 181 | 18.1 | 4.5 | 140° |
| HCD 182 | 18.2 | 4.5 | 140° |
| HCD 183 | 18.3 | 4.5 | 140° |
| Part No.规格型号型番 | D直径直径 | d连接径接続径 | a°顶角先端角 |
|---|---|---|---|
| HCD 184 | 18.4 | 4.5 | 140° |
| HCD 185 | 18.5 | 4.5 | 140° |
| HCD 186 | 18.6 | 4.5 | 140° |
| HCD 187 | 18.7 | 4.5 | 140° |
| HCD 188 | 18.8 | 4.5 | 140° |
| HCD 189 | 18.9 | 4.5 | 140° |
| HCD 190 | 19 | 4.5 | 140° |
| HCD 191 | 19.1 | 4.5 | 140° |
| HCD 192 | 19.2 | 4.5 | 140° |
| HCD 193 | 19.3 | 4.5 | 140° |
| HCD 194 | 19.4 | 4.5 | 140° |
| HCD 195 | 19.5 | 4.5 | 140° |
| HCD 196 | 19.6 | 4.5 | 140° |
| HCD 197 | 19.7 | 4.5 | 140° |
| HCD 198 | 19.8 | 4.5 | 140° |
| HCD 199 | 19.9 | 4.5 | 140° |
| HCD 200 | 20 | 5 | 140° |
| HCD 201 | 20.1 | 5 | 140° |
| HCD 202 | 20.2 | 5 | 140° |
| HCD 203 | 20.3 | 5 | 140° |
| HCD 204 | 20.4 | 5 | 140° |
| HCD 205 | 20.5 | 5 | 140° |
| HCD 206 | 20.6 | 5 | 140° |
| HCD 207 | 20.7 | 5 | 140° |
| HCD 208 | 20.8 | 5 | 140° |
| HCD 209 | 20.9 | 5 | 140° |
| HCD 210 | 21 | 5 | 140° |
| HCD 211 | 21.1 | 5 | 140° |
DRAWING NOTATION技术图尺寸标注図面記号D: cutting diameter · d: connection diameter · a: point angleD：切削直径 · d：连接直径 · a：顶角D：切削径・d：接続径・a：先端角
REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズHCD
Replaceable Drill Heads可换式钻头刀片交換式ドリルヘッド
HCD · Ø21.2-26.7 mmHCD · Ø21.2-26.7 mmHCD・Ø21.2-26.7 mm
SUITABLE WORKPIECE MATERIALS适合加工材料適用被削材
PSteel钢鋼
MStainless steel不锈钢ステンレス鋼
| Part No.规格型号型番 | D直径直径 | d连接径接続径 | a°顶角先端角 |
|---|---|---|---|
| HCD 212 | 21.2 | 5 | 140° |
| HCD 213 | 21.3 | 5 | 140° |
| HCD 214 | 21.4 | 5 | 140° |
| HCD 215 | 21.5 | 5 | 140° |
| HCD 216 | 21.6 | 5 | 140° |
| HCD 217 | 21.7 | 5 | 140° |
| HCD 218 | 21.8 | 5 | 140° |
| HCD 219 | 21.9 | 5 | 140° |
| HCD 220 | 22 | 5 | 140° |
| HCD 221 | 22.1 | 5 | 140° |
| HCD 222 | 22.2 | 5 | 140° |
| HCD 223 | 22.3 | 5 | 140° |
| HCD 224 | 22.4 | 5 | 140° |
| HCD 225 | 22.5 | 5 | 140° |
| HCD 226 | 22.6 | 5 | 140° |
| HCD 227 | 22.7 | 5 | 140° |
| HCD 228 | 22.8 | 5 | 140° |
| HCD 229 | 22.9 | 5 | 140° |
| HCD 230 | 23 | 5 | 140° |
| HCD 231 | 23.1 | 5 | 140° |
| HCD 232 | 23.2 | 5 | 140° |
| HCD 233 | 23.3 | 5 | 140° |
| HCD 234 | 23.4 | 5 | 140° |
| HCD 235 | 23.5 | 5 | 140° |
| HCD 236 | 23.6 | 5 | 140° |
| HCD 237 | 23.7 | 5 | 140° |
| HCD 238 | 23.8 | 5 | 140° |
| HCD 239 | 23.9 | 5 | 140° |
| Part No.规格型号型番 | D直径直径 | d连接径接続径 | a°顶角先端角 |
|---|---|---|---|
| HCD 240 | 24 | 5.5 | 140° |
| HCD 241 | 24.1 | 5.5 | 140° |
| HCD 242 | 24.2 | 5.5 | 140° |
| HCD 243 | 24.3 | 5.5 | 140° |
| HCD 244 | 24.4 | 5.5 | 140° |
| HCD 245 | 24.5 | 5.5 | 140° |
| HCD 246 | 24.6 | 5.5 | 140° |
| HCD 247 | 24.7 | 5.5 | 140° |
| HCD 248 | 24.8 | 5.5 | 140° |
| HCD 249 | 24.9 | 5.5 | 140° |
| HCD 250 | 25 | 5.5 | 140° |
| HCD 251 | 25.1 | 5.5 | 140° |
| HCD 252 | 25.2 | 5.5 | 140° |
| HCD 253 | 25.3 | 5.5 | 140° |
| HCD 254 | 25.4 | 5.5 | 140° |
| HCD 255 | 25.5 | 5.5 | 140° |
| HCD 256 | 25.6 | 5.5 | 140° |
| HCD 257 | 25.7 | 5.5 | 140° |
| HCD 258 | 25.8 | 5.5 | 140° |
| HCD 259 | 25.9 | 5.5 | 140° |
| HCD 260 | 26 | 5.5 | 140° |
| HCD 261 | 26.1 | 5.5 | 140° |
| HCD 262 | 26.2 | 5.5 | 140° |
| HCD 263 | 26.3 | 5.5 | 140° |
| HCD 264 | 26.4 | 5.5 | 140° |
| HCD 265 | 26.5 | 5.5 | 140° |
| HCD 266 | 26.6 | 5.5 | 140° |
| HCD 267 | 26.7 | 5.5 | 140° |
DRAWING NOTATION技术图尺寸标注図面記号D: cutting diameter · d: connection diameter · a: point angleD：切削直径 · d：连接直径 · a：顶角D：切削径・d：接続径・a：先端角
REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズHCD
Replaceable Drill Heads可换式钻头刀片交換式ドリルヘッド
HCD · Ø26.8-32 mmHCD · Ø26.8-32 mmHCD・Ø26.8-32 mm
SUITABLE WORKPIECE MATERIALS适合加工材料適用被削材
PSteel钢鋼
MStainless steel不锈钢ステンレス鋼
| Part No.规格型号型番 | D直径直径 | d连接径接続径 | a°顶角先端角 |
|---|---|---|---|
| HCD 268 | 26.8 | 5.5 | 140° |
| HCD 269 | 26.9 | 5.5 | 140° |
| HCD 270 | 27 | 5.5 | 140° |
| HCD 271 | 27.1 | 5.5 | 140° |
| HCD 272 | 27.2 | 5.5 | 140° |
| HCD 273 | 27.3 | 5.5 | 140° |
| HCD 274 | 27.4 | 5.5 | 140° |
| HCD 275 | 27.5 | 5.5 | 140° |
| HCD 276 | 27.6 | 5.5 | 140° |
| HCD 277 | 27.7 | 5.5 | 140° |
| HCD 278 | 27.8 | 5.5 | 140° |
| HCD 279 | 27.9 | 5.5 | 140° |
| HCD 280 | 28 | 6 | 140° |
| HCD 281 | 28.1 | 6 | 140° |
| HCD 282 | 28.2 | 6 | 140° |
| HCD 283 | 28.3 | 6 | 140° |
| HCD 284 | 28.4 | 6 | 140° |
| HCD 285 | 28.5 | 6 | 140° |
| HCD 286 | 28.6 | 6 | 140° |
| HCD 287 | 28.7 | 6 | 140° |
| HCD 288 | 28.8 | 6 | 140° |
| HCD 289 | 28.9 | 6 | 140° |
| HCD 290 | 29 | 6 | 140° |
| HCD 291 | 29.1 | 6 | 140° |
| HCD 292 | 29.2 | 6 | 140° |
| HCD 293 | 29.3 | 6 | 140° |
| HCD 294 | 29.4 | 6 | 140° |
| Part No.规格型号型番 | D直径直径 | d连接径接続径 | a°顶角先端角 |
|---|---|---|---|
| HCD 295 | 29.5 | 6 | 140° |
| HCD 296 | 29.6 | 6 | 140° |
| HCD 297 | 29.7 | 6 | 140° |
| HCD 298 | 29.8 | 6 | 140° |
| HCD 299 | 29.9 | 6 | 140° |
| HCD 300 | 30 | 6.4 | 140° |
| HCD 301 | 30.1 | 6.4 | 140° |
| HCD 302 | 30.2 | 6.4 | 140° |
| HCD 303 | 30.3 | 6.4 | 140° |
| HCD 304 | 30.4 | 6.4 | 140° |
| HCD 305 | 30.5 | 6.4 | 140° |
| HCD 306 | 30.6 | 6.4 | 140° |
| HCD 307 | 30.7 | 6.4 | 140° |
| HCD 308 | 30.8 | 6.4 | 140° |
| HCD 309 | 30.9 | 6.4 | 140° |
| HCD 310 | 31 | 6.4 | 140° |
| HCD 311 | 31.1 | 6.4 | 140° |
| HCD 312 | 31.2 | 6.4 | 140° |
| HCD 313 | 31.3 | 6.4 | 140° |
| HCD 314 | 31.4 | 6.4 | 140° |
| HCD 315 | 31.5 | 6.4 | 140° |
| HCD 316 | 31.6 | 6.4 | 140° |
| HCD 317 | 31.7 | 6.4 | 140° |
| HCD 318 | 31.8 | 6.4 | 140° |
| HCD 319 | 31.9 | 6.4 | 140° |
| HCD 320 | 32 | 6.4 | 140° |
DRAWING NOTATION技术图尺寸标注図面記号D: cutting diameter · d: connection diameter · a: point angleD：切削直径 · d：连接直径 · a：顶角D：切削径・d：接続径・a：先端角
REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズHCD
Recommended Cutting Conditions推荐切削参数推奨切削条件
Replaceable drill heads · Ø10-32 mm可换式钻头刀片 · Ø10-32 mm交換式ドリルヘッド・Ø10-32 mm
HCD HEADS · RECOMMENDED CUTTING CONDITIONSHCD 刀片推荐切削参数HCD ヘッド推奨切削条件
| Head / diameter刀片型号 / 直径ヘッド型番 / 直径 | ISO P | ISO M | ||||||
|---|---|---|---|---|---|---|---|---|
| Low-carbon steel低碳钢低炭素鋼 | Medium-carbon / alloy steel中碳钢、合金钢中炭素鋼・合金鋼 | Prehardened steel (below HRC 35)预硬钢（HRC 35以下）プリハードン鋼（HRC 35未満） | Stainless steel不锈钢ステンレス鋼 | |||||
| Vcm/min | fmm/rev | Vcm/min | fmm/rev | Vcm/min | fmm/rev | Vcm/min | fmm/rev | |
| HCD 100-129Ø10.0-12.9 mm | 80-100 | 0.10-0.15 | 90-110 | 0.15-0.20 | 70-90 | 0.12-0.20 | 80-100 | 0.10-0.15 |
| HCD 130-149Ø13.0-14.9 mm | 80-100 | 0.10-0.18 | 90-110 | 0.15-0.20 | 70-90 | 0.12-0.20 | 80-100 | 0.10-0.18 |
| HCD 150-189Ø15.0-18.9 mm | 90-110 | 0.10-0.20 | 90-120 | 0.15-0.25 | 75-100 | 0.15-0.25 | 90-110 | 0.10-0.20 |
| HCD 190-239Ø19.0-23.9 mm | 90-110 | 0.10-0.20 | 90-120 | 0.15-0.25 | 75-100 | 0.15-0.25 | 90-110 | 0.10-0.20 |
| HCD 240-279Ø24.0-27.9 mm | 90-110 | 0.12-0.20 | 90-120 | 0.15-0.30 | 75-100 | 0.15-0.25 | 90-110 | 0.12-0.20 |
| HCD 280-320Ø28.0-32.0 mm | 80-100 | 0.12-0.20 | 90-110 | 0.15-0.30 | 70-90 | 0.15-0.25 | 80-100 | 0.12-0.20 |
Vc: cutting speed (m/min) · f: feed per revolution (mm/rev)Vc：切削速度（m/min）· f：每转进给（mm/rev）Vc：切削速度（m/min）・f：1回転当たりの送り（mm/rev）
PILOT HOLE & FEED ADJUSTMENT预钻孔与进给调整下穴と送りの調整8D (diameters 15 mm and below) and 10D require a pilot hole. Reduce feed per revolution by approximately 10%.8D（直径15以下）和10D需预钻孔，每转进给降低10%左右。8D（径15 mm以下）および10Dは下穴加工が必要です。1回転当たりの送りを約10%下げてください。
Recommended for the materials listed above. Other workpiece materials are not recommended.推荐用于以上列出的材料；未列出的工件材料不推荐使用。上記の被削材に推奨します。記載のない被削材への使用は推奨しません。
REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズ3D
Modular Drill Bodies模块式钻头刀杆ヘッド交換式ドリルボディ
3×D · Ø10-31 mm body program3D · 刀杆公称直径 Ø10-31 mm3D・ボディ呼び径 Ø10-31 mm
| Part No.规格型号型番 | D钻径ドリル径 | L1有效长度有効長 | L总长全長 | D1台阶径肩部径 | Ds柄径シャンク径 | Insert range刀片范围ヘッド径範囲 | Screw螺钉ねじ | Wrench扳手レンチ |
|---|---|---|---|---|---|---|---|---|
| C20-100-3D | 10 | 30 | 102 | 24 | 20 | 10.0-10.9 | CM2.2×9 | T6 |
| C20-110-3D | 11 | 33 | 105 | 24 | 20 | 11.0-11.9 | CM2.2×9 | T6 |
| C20-120-3D | 12 | 36 | 108 | 24 | 20 | 12.0-12.9 | CM2.2×9 | T6 |
| C20-130-3D | 13 | 39 | 112 | 24 | 20 | 13.0-13.9 | CM2.5×12 | T8 |
| C20-140-3D | 14 | 42 | 116 | 24 | 20 | 14.0-14.9 | CM2.5×12 | T8 |
| C20-150-3D | 15 | 45 | 119 | 24 | 20 | 15.0-15.9 | CM2.5×12 | T8 |
| C20-160-3D | 16 | 48 | 122 | 24 | 20 | 16.0-16.9 | CM2.5×14.2 | T8 |
| C20-170-3D | 17 | 51 | 125 | 24 | 20 | 17.0-17.9 | CM2.5×14.2 | T8 |
| C20-180-3D | 18 | 54 | 128 | 24 | 20 | 18.0-18.9 | CM3×16.5 | T10 |
| C25-190-3D | 19 | 57 | 142 | 29 | 25 | 19.0-19.9 | CM3×16.5 | T10 |
| C25-200-3D | 20 | 60 | 145 | 29 | 25 | 20.0-20.9 | CM3×16.5 | T10 |
| C25-210-3D | 21 | 63 | 148 | 29 | 25 | 21.0-21.9 | CM3×19.7 | T10 |
| C25-220-3D | 22 | 66 | 151 | 29 | 25 | 22.0-22.9 | CM3×19.7 | T10 |
| C25-230-3D | 23 | 69 | 154 | 29 | 25 | 23.0-23.9 | CM3×19.7 | T10 |
| C32-240-3D | 24 | 72 | 168 | 39 | 32 | 24.0-24.9 | CM3.5×22.5 | T15 |
| C32-250-3D | 25 | 75 | 171 | 39 | 32 | 25.0-25.9 | CM3.5×22.5 | T15 |
| C32-260-3D | 26 | 78 | 174 | 39 | 32 | 26.0-26.9 | CM3.5×24 | T15 |
| C32-270-3D | 27 | 81 | 177 | 39 | 32 | 27.0-27.9 | CM3.5×24 | T15 |
| C32-280-3D | 28 | 84 | 180 | 39 | 32 | 28.0-28.9 | CM4×25.5 | T15 |
| C32-290-3D | 29 | 87 | 183 | 39 | 32 | 29.0-29.9 | CM4×25.5 | T15 |
| C32-300-3D | 30 | 90 | 186 | 39 | 32 | 30.0-30.9 | CM5×27.5 | T20 |
| C32-310-3D | 31 | 93 | 189 | 39 | 32 | 31.0-32.0 | CM5×27.5 | T20 |
DRAWING NOTATION技术图尺寸标注図面記号D: nominal drill diameter · L1: working length · L: overall lengthD：公称钻径 · L1：有效长度 · L：总长D：呼び径・L1：有効長・L：全長
D1: shoulder diameter · Ds: shank diameter · Select the head within the listed insert range.D1：台阶直径 · Ds：柄径 · 刀片直径按表内范围选择。D1：肩部径・Ds：シャンク径・記載のヘッド径範囲から選択。
REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズ5D
Modular Drill Bodies模块式钻头刀杆ヘッド交換式ドリルボディ
5×D · Ø10-31 mm body program5D · 刀杆公称直径 Ø10-31 mm5D・ボディ呼び径 Ø10-31 mm
| Part No.规格型号型番 | D钻径ドリル径 | L1有效长度有効長 | L总长全長 | D1台阶径肩部径 | Ds柄径シャンク径 | Insert range刀片范围ヘッド径範囲 | Screw螺钉ねじ | Wrench扳手レンチ |
|---|---|---|---|---|---|---|---|---|
| C20-100-5D | 10 | 50 | 122 | 24 | 20 | 10.0-10.9 | CM2.2×9 | T6 |
| C20-110-5D | 11 | 55 | 127 | 24 | 20 | 11.0-11.9 | CM2.2×9 | T6 |
| C20-120-5D | 12 | 60 | 133 | 24 | 20 | 12.0-12.9 | CM2.2×9 | T6 |
| C20-130-5D | 13 | 65 | 138 | 24 | 20 | 13.0-13.9 | CM2.5×12 | T8 |
| C20-140-5D | 14 | 70 | 144 | 24 | 20 | 14.0-14.9 | CM2.5×12 | T8 |
| C20-150-5D | 15 | 75 | 149 | 24 | 20 | 15.0-15.9 | CM2.5×12 | T8 |
| C20-160-5D | 16 | 80 | 154 | 24 | 20 | 16.0-16.9 | CM2.5×14.2 | T8 |
| C20-170-5D | 17 | 85 | 159 | 24 | 20 | 17.0-17.9 | CM2.5×14.2 | T8 |
| C20-180-5D | 18 | 90 | 164 | 24 | 20 | 18.0-18.9 | CM3×16.5 | T10 |
| C25-190-5D | 19 | 95 | 180 | 29 | 25 | 19.0-19.9 | CM3×16.5 | T10 |
| C25-200-5D | 20 | 100 | 185 | 29 | 25 | 20.0-20.9 | CM3×16.5 | T10 |
| C25-210-5D | 21 | 105 | 190 | 29 | 25 | 21.0-21.9 | CM3×19.7 | T10 |
| C25-220-5D | 22 | 110 | 195 | 29 | 25 | 22.0-22.9 | CM3×19.7 | T10 |
| C25-230-5D | 23 | 115 | 200 | 29 | 25 | 23.0-23.9 | CM3×19.7 | T10 |
| C32-240-5D | 24 | 120 | 216 | 39 | 32 | 24.0-24.9 | CM3.5×22.5 | T15 |
| C32-250-5D | 25 | 125 | 221 | 39 | 32 | 25.0-25.9 | CM3.5×22.5 | T15 |
| C32-260-5D | 26 | 130 | 226 | 39 | 32 | 26.0-26.9 | CM3.5×24 | T15 |
| C32-270-5D | 27 | 135 | 231 | 39 | 32 | 27.0-27.9 | CM3.5×24 | T15 |
| C32-280-5D | 28 | 140 | 236 | 39 | 32 | 28.0-28.9 | CM4×25.5 | T15 |
| C32-290-5D | 29 | 145 | 241 | 39 | 32 | 29.0-29.9 | CM4×25.5 | T15 |
| C32-300-5D | 30 | 150 | 246 | 39 | 32 | 30.0-30.9 | CM5×27.5 | T20 |
| C32-310-5D | 31 | 155 | 251 | 39 | 32 | 31.0-32.0 | CM5×27.5 | T20 |
DRAWING NOTATION技术图尺寸标注図面記号D: nominal drill diameter · L1: working length · L: overall lengthD：公称钻径 · L1：有效长度 · L：总长D：呼び径・L1：有効長・L：全長
D1: shoulder diameter · Ds: shank diameter · Select the head within the listed insert range.D1：台阶直径 · Ds：柄径 · 刀片直径按表内范围选择。D1：肩部径・Ds：シャンク径・記載のヘッド径範囲から選択。
REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズ8D
Modular Drill Bodies模块式钻头刀杆ヘッド交換式ドリルボディ
8×D · Ø10-31 mm body program8D · 刀杆公称直径 Ø10-31 mm8D・ボディ呼び径 Ø10-31 mm
| Part No.规格型号型番 | D钻径ドリル径 | L1有效长度有効長 | L总长全長 | D1台阶径肩部径 | Ds柄径シャンク径 | Insert range刀片范围ヘッド径範囲 | Screw螺钉ねじ | Wrench扳手レンチ |
|---|---|---|---|---|---|---|---|---|
| C20-100-8D | 10 | 80 | 152 | 24 | 20 | 10.0-10.9 | CM2.2×9 | T6 |
| C20-110-8D | 11 | 88 | 160 | 24 | 20 | 11.0-11.9 | CM2.2×9 | T6 |
| C20-120-8D | 12 | 96 | 169 | 24 | 20 | 12.0-12.9 | CM2.2×9 | T6 |
| C20-130-8D | 13 | 104 | 177 | 24 | 20 | 13.0-13.9 | CM2.5×12 | T8 |
| C20-140-8D | 14 | 112 | 186 | 24 | 20 | 14.0-14.9 | CM2.5×12 | T8 |
| C20-150-8D | 15 | 120 | 194 | 24 | 20 | 15.0-15.9 | CM2.5×12 | T8 |
| C20-160-8D | 16 | 128 | 202 | 24 | 20 | 16.0-16.9 | CM2.5×14.2 | T8 |
| C20-170-8D | 17 | 136 | 210 | 24 | 20 | 17.0-17.9 | CM2.5×14.2 | T8 |
| C20-180-8D | 18 | 144 | 218 | 24 | 20 | 18.0-18.9 | CM3×16.5 | T10 |
| C25-190-8D | 19 | 152 | 237 | 29 | 25 | 19.0-19.9 | CM3×16.5 | T10 |
| C25-200-8D | 20 | 160 | 245 | 29 | 25 | 20.0-20.9 | CM3×16.5 | T10 |
| C25-210-8D | 21 | 168 | 253 | 29 | 25 | 21.0-21.9 | CM3×19.7 | T10 |
| C25-220-8D | 22 | 176 | 261 | 29 | 25 | 22.0-22.9 | CM3×19.7 | T10 |
| C25-230-8D | 23 | 184 | 269 | 29 | 25 | 23.0-23.9 | CM3×19.7 | T10 |
| C32-240-8D | 24 | 192 | 288 | 39 | 32 | 24.0-24.9 | CM3.5×22.5 | T15 |
| C32-250-8D | 25 | 200 | 296 | 39 | 32 | 25.0-25.9 | CM3.5×22.5 | T15 |
| C32-260-8D | 26 | 208 | 304 | 39 | 32 | 26.0-26.9 | CM3.5×24 | T15 |
| C32-270-8D | 27 | 216 | 312 | 39 | 32 | 27.0-27.9 | CM3.5×24 | T15 |
| C32-280-8D | 28 | 224 | 320 | 39 | 32 | 28.0-28.9 | CM4×25.5 | T15 |
| C32-290-8D | 29 | 232 | 328 | 39 | 32 | 29.0-29.9 | CM4×25.5 | T15 |
| C32-300-8D | 30 | 240 | 336 | 39 | 32 | 30.0-30.9 | CM5×27.5 | T20 |
| C32-310-8D | 31 | 248 | 344 | 39 | 32 | 31.0-32.0 | CM5×27.5 | T20 |
DRAWING NOTATION技术图尺寸标注図面記号D: nominal drill diameter · L1: working length · L: overall lengthD：公称钻径 · L1：有效长度 · L：总长D：呼び径・L1：有効長・L：全長
D1: shoulder diameter · Ds: shank diameter · Select the head within the listed insert range.D1：台阶直径 · Ds：柄径 · 刀片直径按表内范围选择。D1：肩部径・Ds：シャンク径・記載のヘッド径範囲から選択。
REPLACEABLE HEAD DRILLING SYSTEM可换刀片钻削系统ヘッド交換式穴あけシステム
SERIES系列シリーズ10D
Modular Drill Bodies模块式钻头刀杆ヘッド交換式ドリルボディ
10×D · Ø10-31 mm body program10D · 刀杆公称直径 Ø10-31 mm10D・ボディ呼び径 Ø10-31 mm
| Part No.规格型号型番 | D钻径ドリル径 | L1有效长度有効長 | L总长全長 | D1台阶径肩部径 | Ds柄径シャンク径 | Insert range刀片范围ヘッド径範囲 | Screw螺钉ねじ | Wrench扳手レンチ |
|---|---|---|---|---|---|---|---|---|
| C20-100-10D | 10 | 100 | 172 | 24 | 20 | 10.0-10.9 | CM2.2×9 | T6 |
| C20-110-10D | 11 | 110 | 182 | 24 | 20 | 11.0-11.9 | CM2.2×9 | T6 |
| C20-120-10D | 12 | 120 | 193 | 24 | 20 | 12.0-12.9 | CM2.2×9 | T6 |
| C20-130-10D | 13 | 130 | 203 | 24 | 20 | 13.0-13.9 | CM2.5×12 | T8 |
| C20-140-10D | 14 | 140 | 214 | 24 | 20 | 14.0-14.9 | CM2.5×12 | T8 |
| C20-150-10D | 15 | 150 | 224 | 24 | 20 | 15.0-15.9 | CM2.5×12 | T8 |
| C20-160-10D | 16 | 160 | 234 | 24 | 20 | 16.0-16.9 | CM2.5×14.2 | T8 |
| C20-170-10D | 17 | 170 | 244 | 24 | 20 | 17.0-17.9 | CM2.5×14.2 | T8 |
| C20-180-10D | 18 | 180 | 254 | 24 | 20 | 18.0-18.9 | CM3×16.5 | T10 |
| C25-190-10D | 19 | 190 | 275 | 29 | 25 | 19.0-19.9 | CM3×16.5 | T10 |
| C25-200-10D | 20 | 200 | 285 | 29 | 25 | 20.0-20.9 | CM3×16.5 | T10 |
| C25-210-10D | 21 | 210 | 295 | 29 | 25 | 21.0-21.9 | CM3×19.7 | T10 |
| C25-220-10D | 22 | 220 | 305 | 29 | 25 | 22.0-22.9 | CM3×19.7 | T10 |
| C25-230-10D | 23 | 230 | 315 | 29 | 25 | 23.0-23.9 | CM3×19.7 | T10 |
| C32-240-10D | 24 | 240 | 336 | 39 | 32 | 24.0-24.9 | CM3.5×22.5 | T15 |
| C32-250-10D | 25 | 250 | 346 | 39 | 32 | 25.0-25.9 | CM3.5×22.5 | T15 |
| C32-260-10D | 26 | 260 | 356 | 39 | 32 | 26.0-26.9 | CM3.5×24 | T15 |
| C32-270-10D | 27 | 270 | 366 | 39 | 32 | 27.0-27.9 | CM3.5×24 | T15 |
| C32-280-10D | 28 | 280 | 376 | 39 | 32 | 28.0-28.9 | CM4×25.5 | T15 |
| C32-290-10D | 29 | 290 | 386 | 39 | 32 | 29.0-29.9 | CM4×25.5 | T15 |
| C32-300-10D | 30 | 300 | 396 | 39 | 32 | 30.0-30.9 | CM5×27.5 | T20 |
| C32-310-10D | 31 | 310 | 406 | 39 | 32 | 31.0-32.0 | CM5×27.5 | T20 |
DRAWING NOTATION技术图尺寸标注図面記号D: nominal drill diameter · L1: working length · L: overall lengthD：公称钻径 · L1：有效长度 · L：总长D：呼び径・L1：有効長・L：全長
D1: shoulder diameter · Ds: shank diameter · Select the head within the listed insert range.D1：台阶直径 · Ds：柄径 · 刀片直径按表内范围选择。D1：肩部径・Ds：シャンク径・記載のヘッド径範囲から選択。
MADE TO YOUR DRAWINGS
Send us your requirements.
Send us your drawing, workpiece material and machining requirements.
