Standard Products & Non-standard Customization KY TOOLS Capability
Up to 8xD Solid Carbide Drill Solutions
Available in standard and custom geometries
Need Coolant Internal Drillss? See Solid Carbide Coolant-Thru Drills (from 3xD to 25xD).

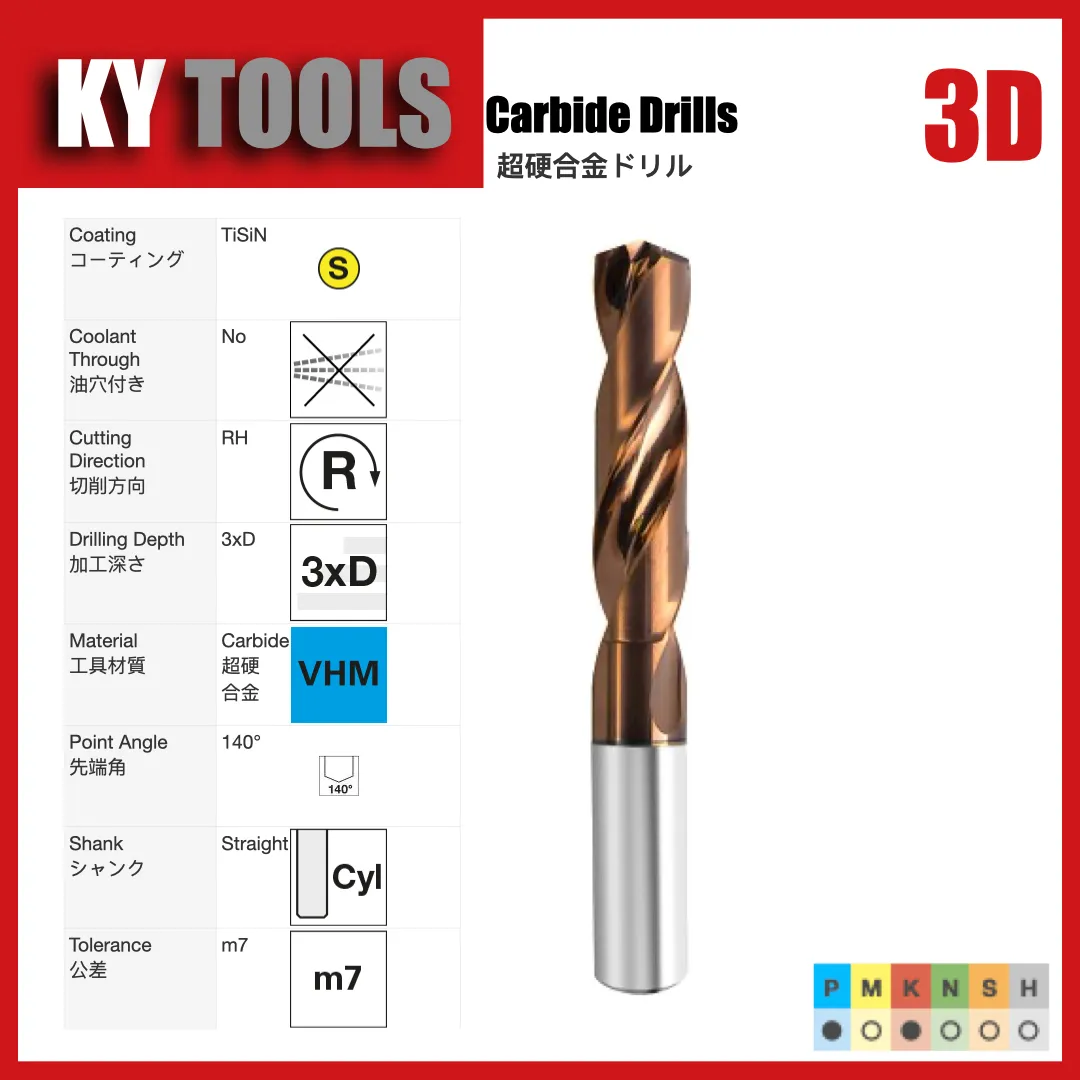

Model & Dimensions
The table switches with the selected ratio above. Full size lists for 3D-8D can be provided on request.
Custom decimal or fractional diameters are available. MOQ is 1 piece.
| CUTTER DIAMETER (D1) h7 | LENGTH OF CUT (L2) | SHANK DIAMETER (D2) h6 | OVERALL LENGTH (L1) | PRICE | QTY | |
|---|---|---|---|---|---|---|
| mm | Inch | mm | mm | mm | USD | MOQ 1 |
Select row(s) to add them to your quote list. We provide quotation + PI within 8 hours.
Need a custom size? Add it to selected items.
Qty defaults to 1. You can use +/- or type a number directly.
KYTOOLS recommended cutting data (summary). Values are reference ranges and should be fine-tuned by machine rigidity, coolant setup, and workpiece condition.
| Dia (mm) | P (Steel) | M (Stainless) | K (Cast Iron) | N (Non-Ferrous) | ||||
|---|---|---|---|---|---|---|---|---|
| Vc (m/min) ext/int | f (mm/r) ext/int | Vc (m/min) ext/int | f (mm/r) ext/int | Vc (m/min) ext/int | f (mm/r) ext/int | Vc (m/min) ext/int | f (mm/r) ext/int | |
| 3 | 50-70 / 60-80 | 0.08-0.12 / 0.08-0.12 | 15-30 / 20-40 | 0.05-0.10 / 0.05-0.10 | 60-90 / 70-100 | 0.10-0.15 / 0.10-0.15 | 100-120 / 150-180 | 0.08-0.10 / 0.08-0.10 |
| 4 | 50-70 / 60-80 | 0.10-0.15 / 0.10-0.15 | 15-30 / 20-40 | 0.05-0.10 / 0.05-0.10 | 60-90 / 70-100 | 0.10-0.15 / 0.10-0.15 | 100-120 / 150-180 | 0.10-0.15 / 0.10-0.15 |
| 5 | 50-70 / 60-80 | 0.10-0.15 / 0.10-0.15 | 20-30 / 25-35 | 0.05-0.10 / 0.05-0.10 | 60-90 / 70-100 | 0.15-0.20 / 0.15-0.20 | 100-120 / 150-180 | 0.10-0.15 / 0.10-0.15 |
| 6 | 50-70 / 60-80 | 0.15-0.20 / 0.15-0.20 | 20-30 / 30-40 | 0.05-0.10 / 0.05-0.10 | 60-90 / 70-100 | 0.15-0.20 / 0.15-0.20 | 100-120 / 150-180 | 0.10-0.15 / 0.10-0.15 |
| 8 | 60-80 / 70-90 | 0.20-0.30 / 0.20-0.30 | 25-40 / 30-45 | 0.08-0.15 / 0.08-0.15 | 70-100 / 80-110 | 0.20-0.30 / 0.20-0.30 | 110-130 / 180-220 | 0.15-0.20 / 0.15-0.20 |
| 10 | 60-80 / 70-90 | 0.20-0.30 / 0.20-0.30 | 30-40 / 30-45 | 0.08-0.15 / 0.08-0.15 | 70-100 / 80-110 | 0.20-0.30 / 0.20-0.30 | 110-130 / 180-220 | 0.15-0.20 / 0.15-0.20 |
| 12 | 60-80 / 70-90 | 0.20-0.30 / 0.20-0.30 | 30-50 / 30-50 | 0.08-0.15 / 0.08-0.15 | 70-100 / 80-110 | 0.20-0.30 / 0.20-0.30 | 110-130 / 180-220 | 0.20-0.30 / 0.20-0.30 |
| 16 | 70-90 / 80-100 | 0.25-0.30 / 0.25-0.30 | 30-50 / 30-50 | 0.10-0.20 / 0.10-0.20 | 80-110 / 90-120 | 0.25-0.35 / 0.25-0.35 | 120-150 / 220-250 | 0.25-0.30 / 0.25-0.30 |
| 20 | 70-90 / 80-100 | 0.25-0.35 / 0.25-0.35 | 30-50 / 30-50 | 0.10-0.20 / 0.10-0.20 | 80-110 / 90-120 | 0.30-0.35 / 0.30-0.35 | 120-150 / 220-250 | 0.25-0.35 / 0.25-0.35 |
Source: KYTOOLS Standard Recommend Drill Cutting Data (EN). Units: Vc = cutting speed (m/min), f = feed per revolution (mm/r). ext = external cooling, int = internal cooling. Final parameters should be validated by machine/toolholder rigidity and coolant delivery.
ISO shaft tolerance reference for h6 and h7 ranges. Toggle units for quick conversion.
| Ø-range mm | Tolerance range mm |
|---|
| Ø-range mm | Tolerance range mm |
|---|
Reference: ISO 286-1 shaft tolerances (h6/h7).
Take a closer look
Solid carbide performance optimized for precision, stability, and long production cycles.
-

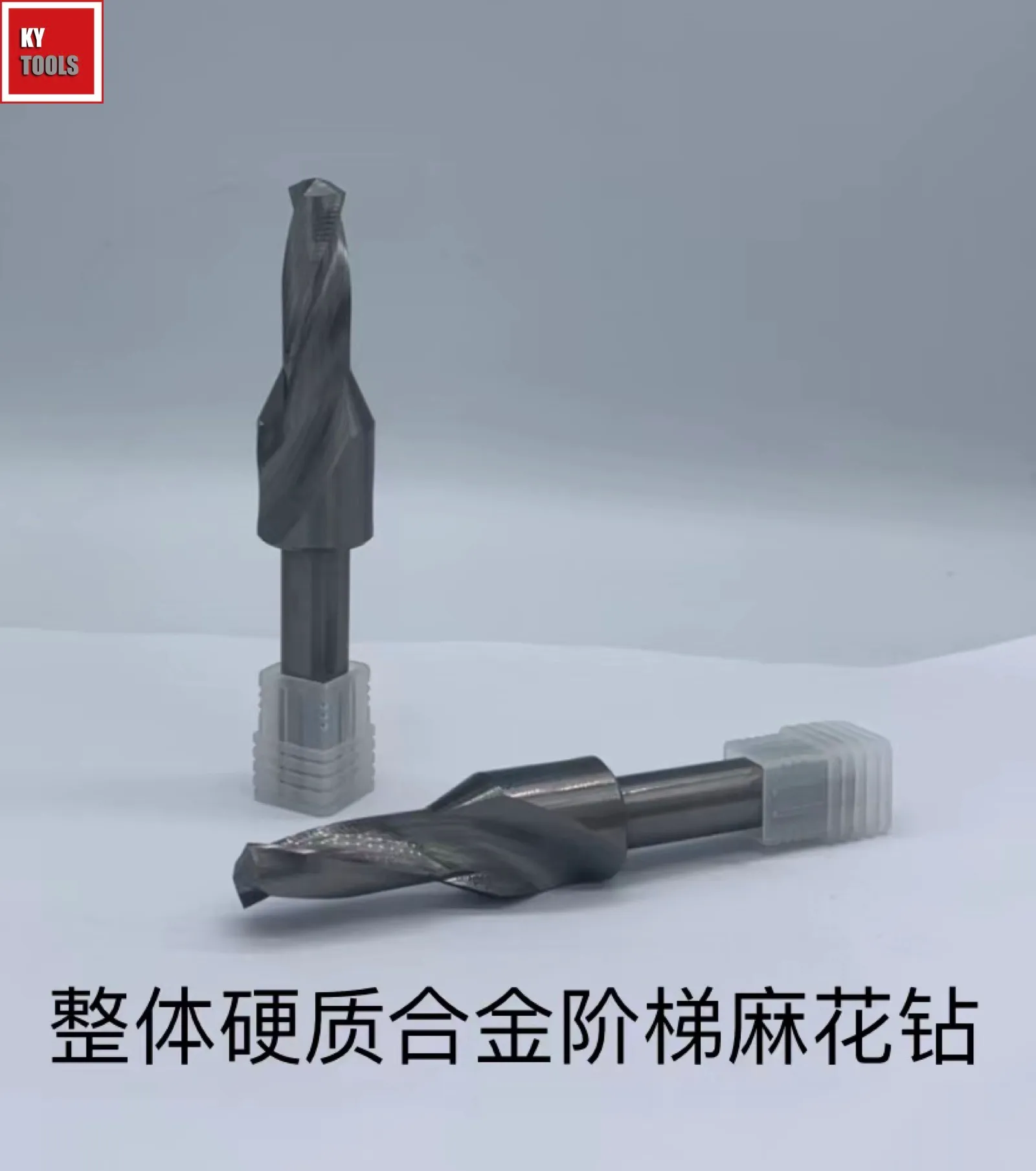

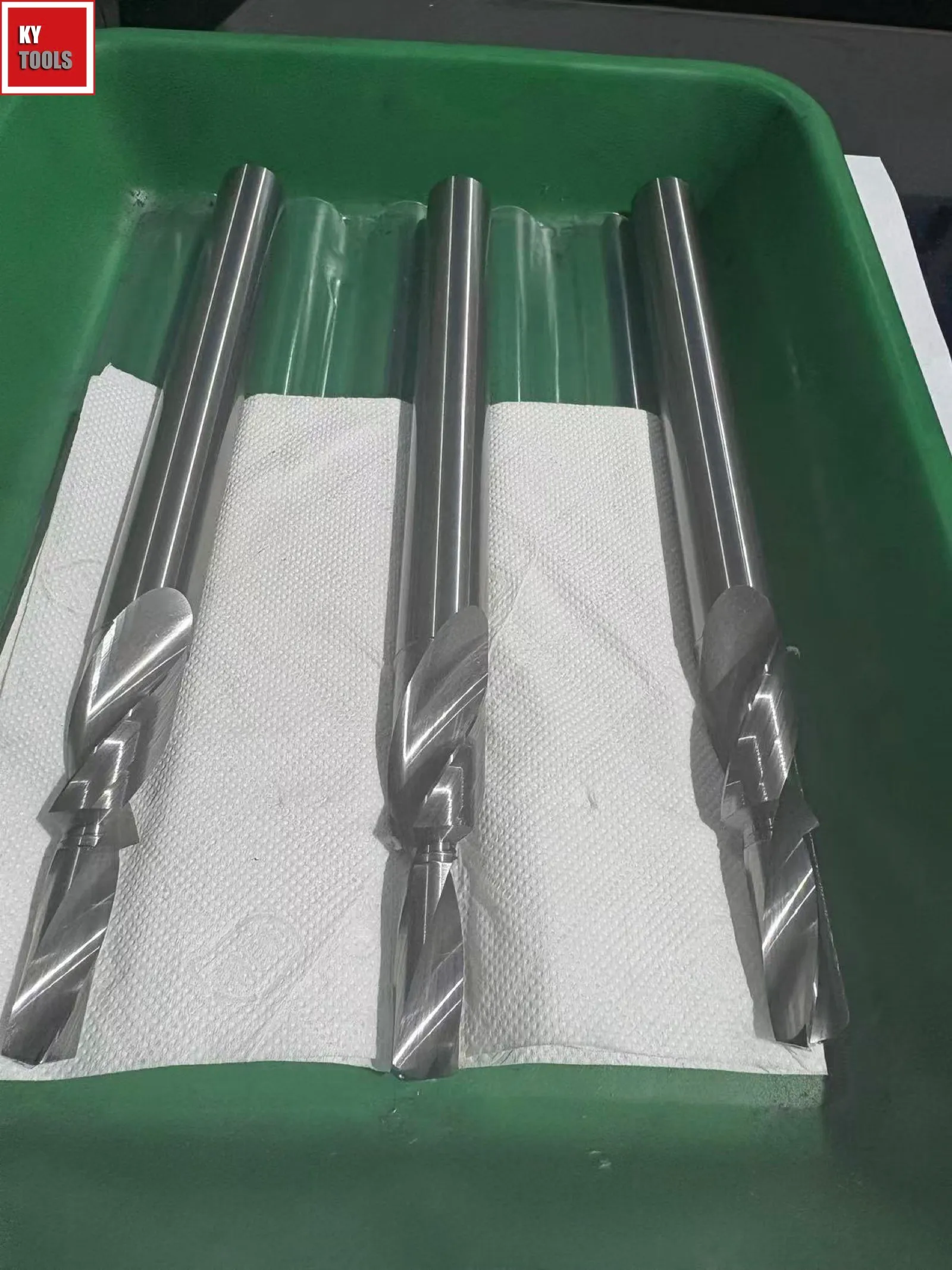

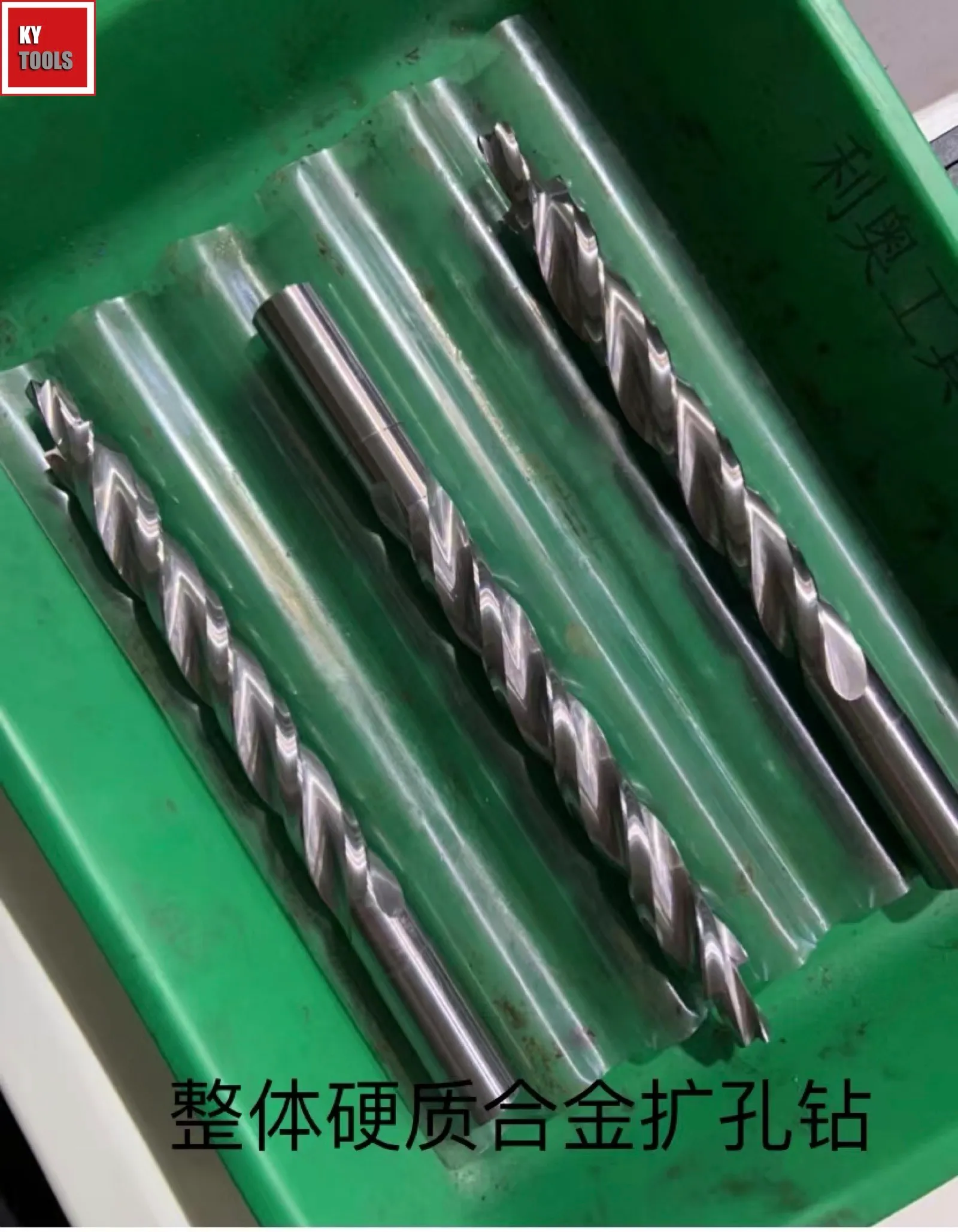

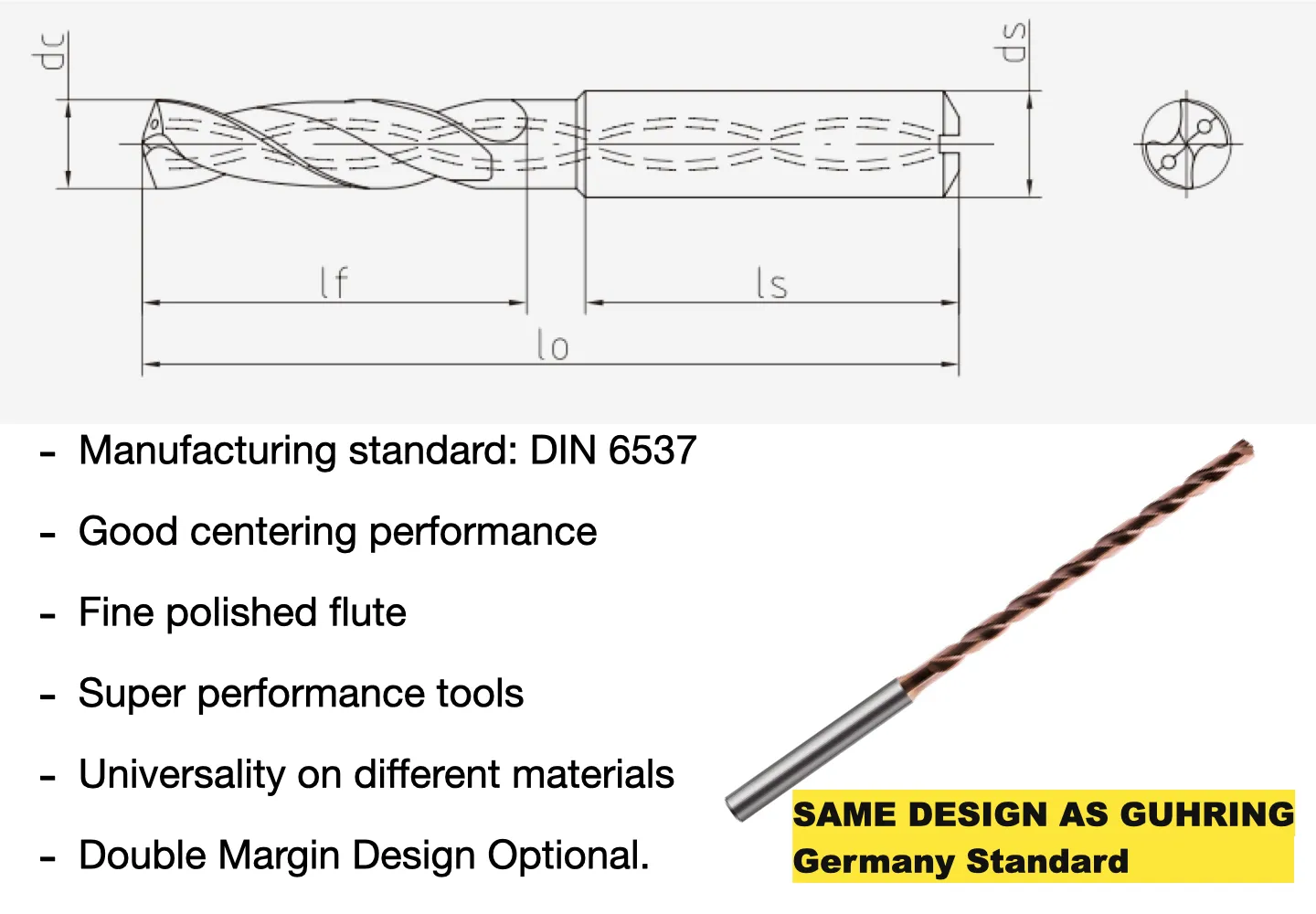

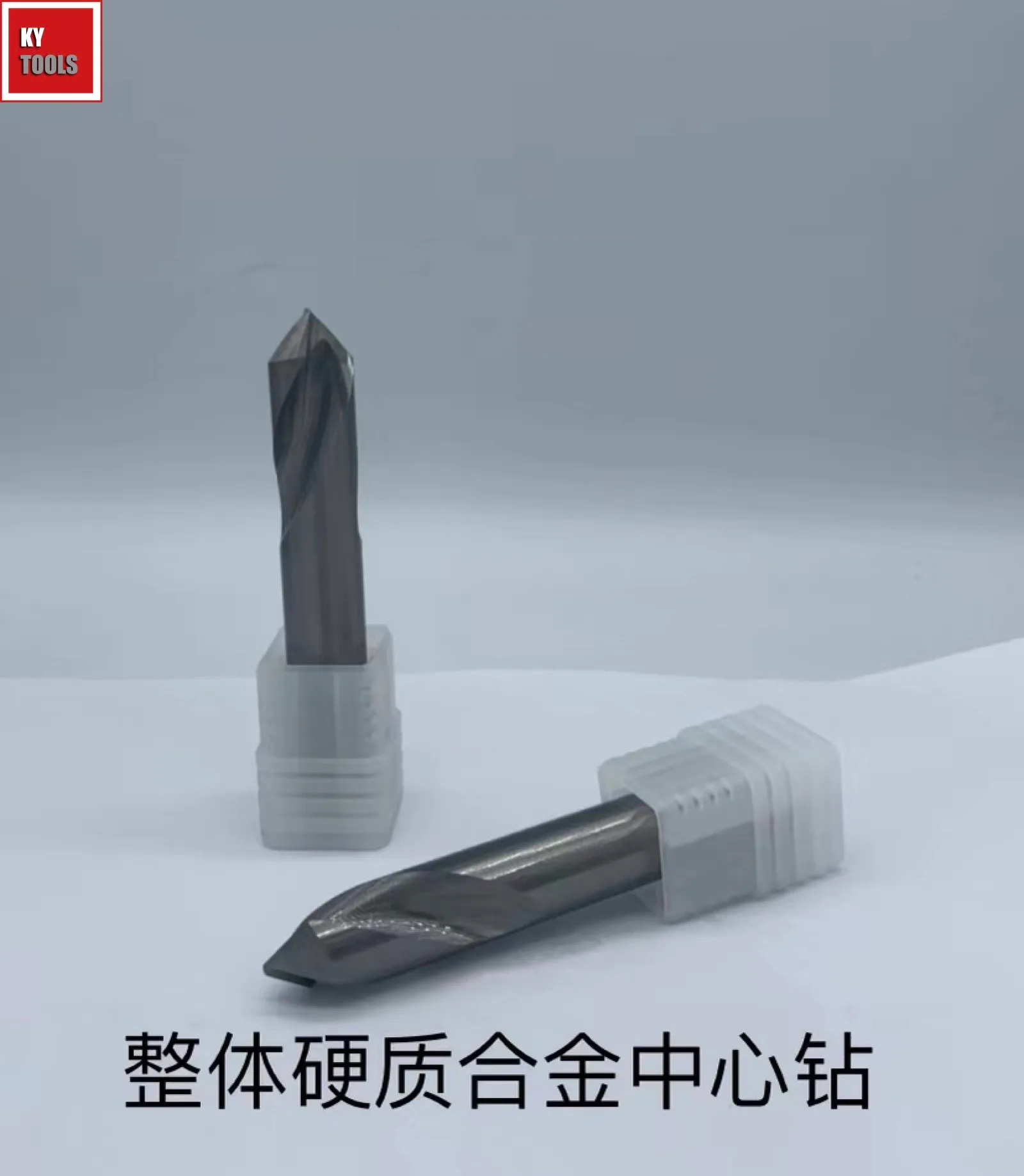

Optimized Point Geometry+Multi-faceted point geometry improves self-centering and lowers thrust load at entry. Geometry can be tuned for carbon steel, stainless steel, cast iron, and non-ferrous materials.
-
Stable Margin & Flute Design+Flute and margin profiles are balanced for chip evacuation and hole-wall stability, reducing vibration and helping maintain straightness in longer depth ratios.
-

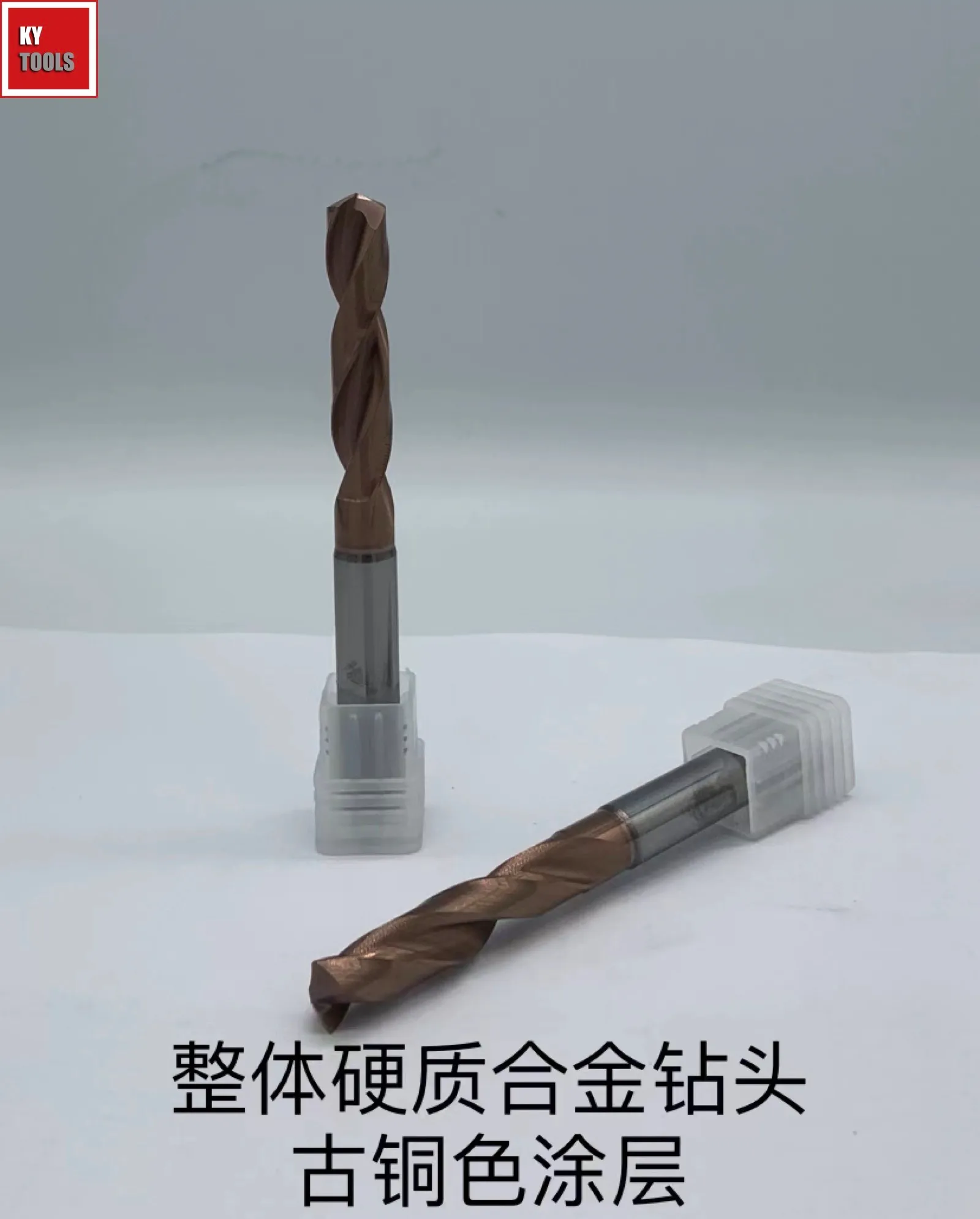

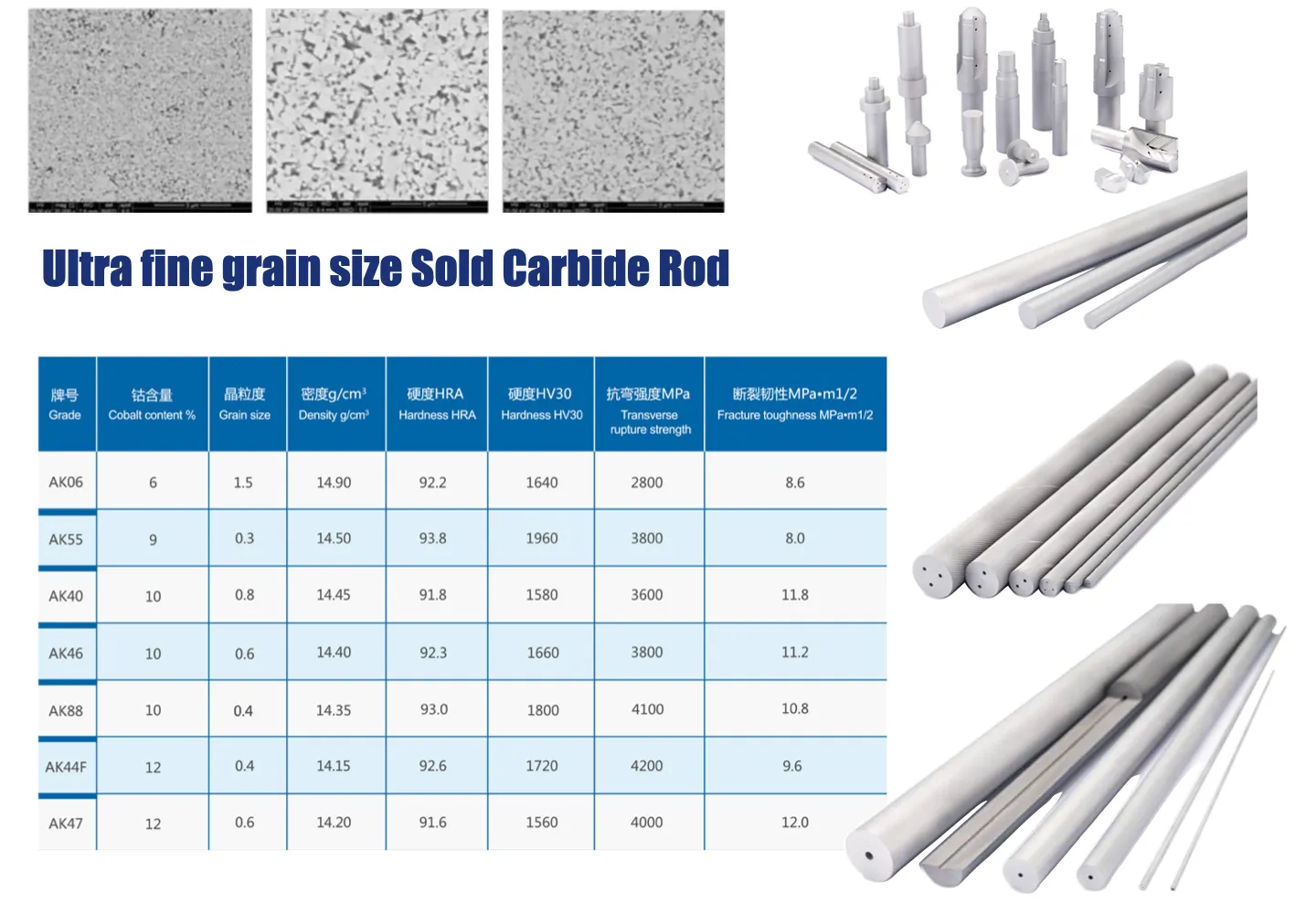

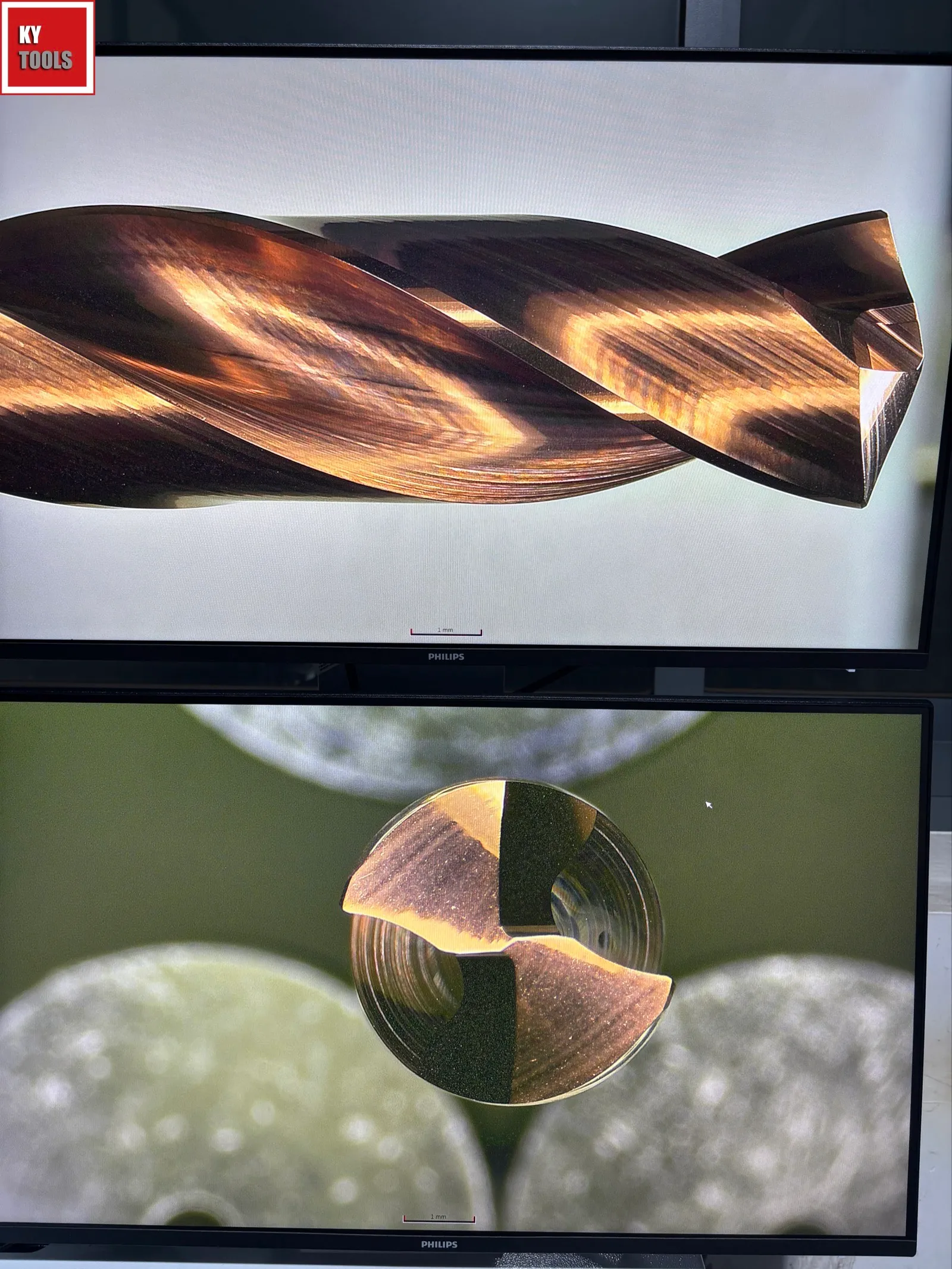

Ultra-fine Carbide Substrate+Premium micro-grain carbide supports both edge toughness and wear resistance, giving more stable performance across high-volume production and difficult materials.
-

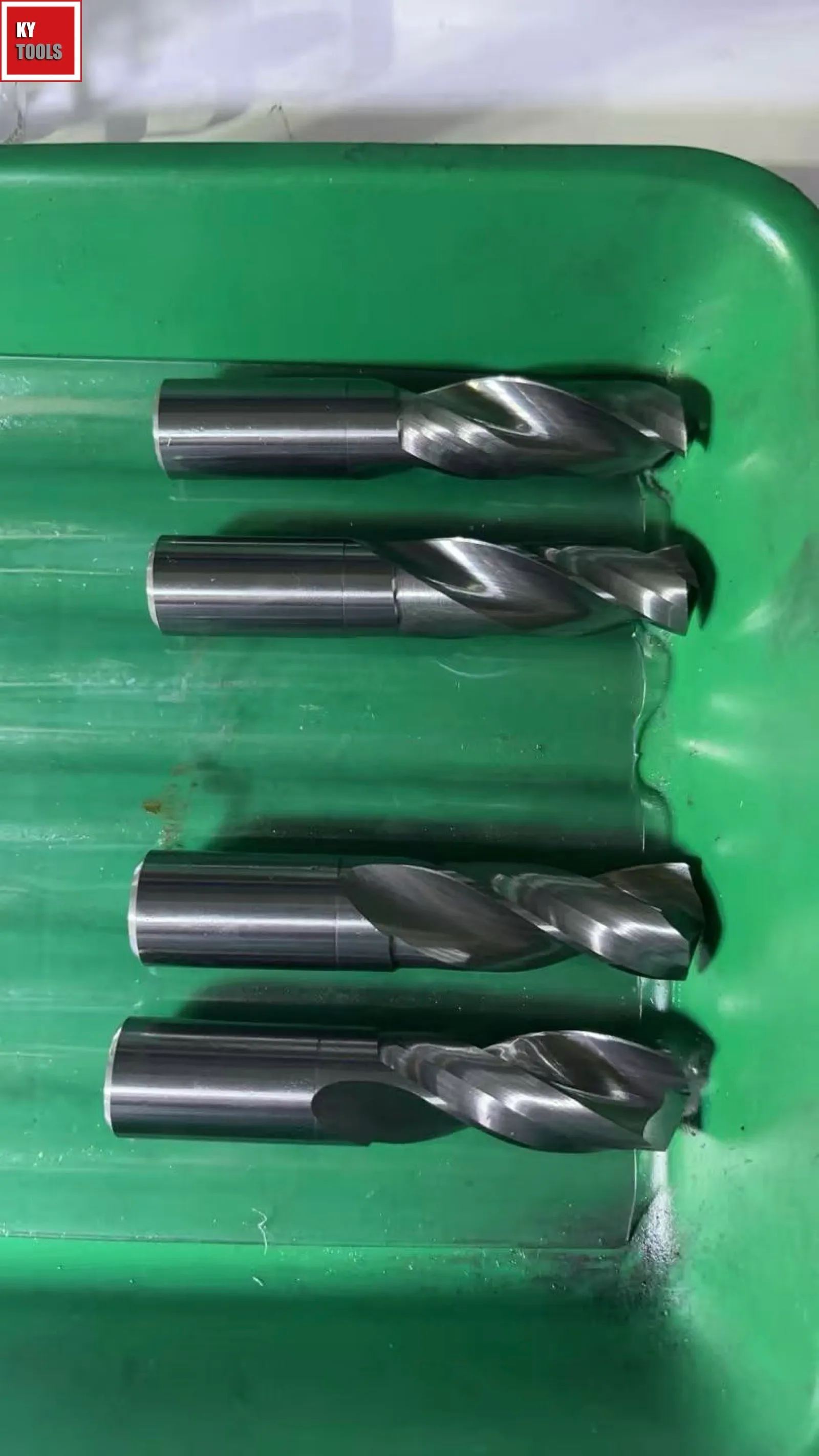

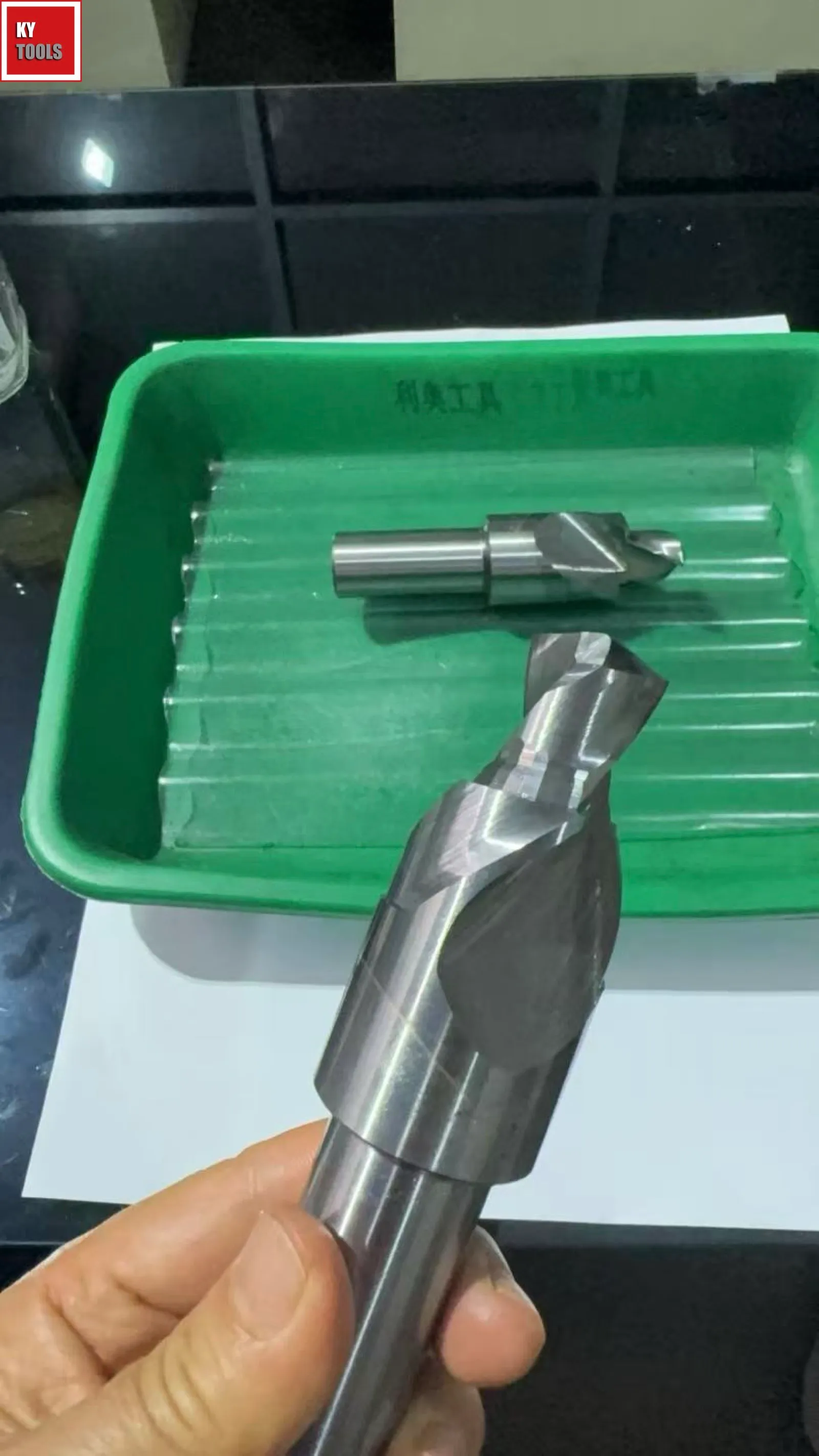

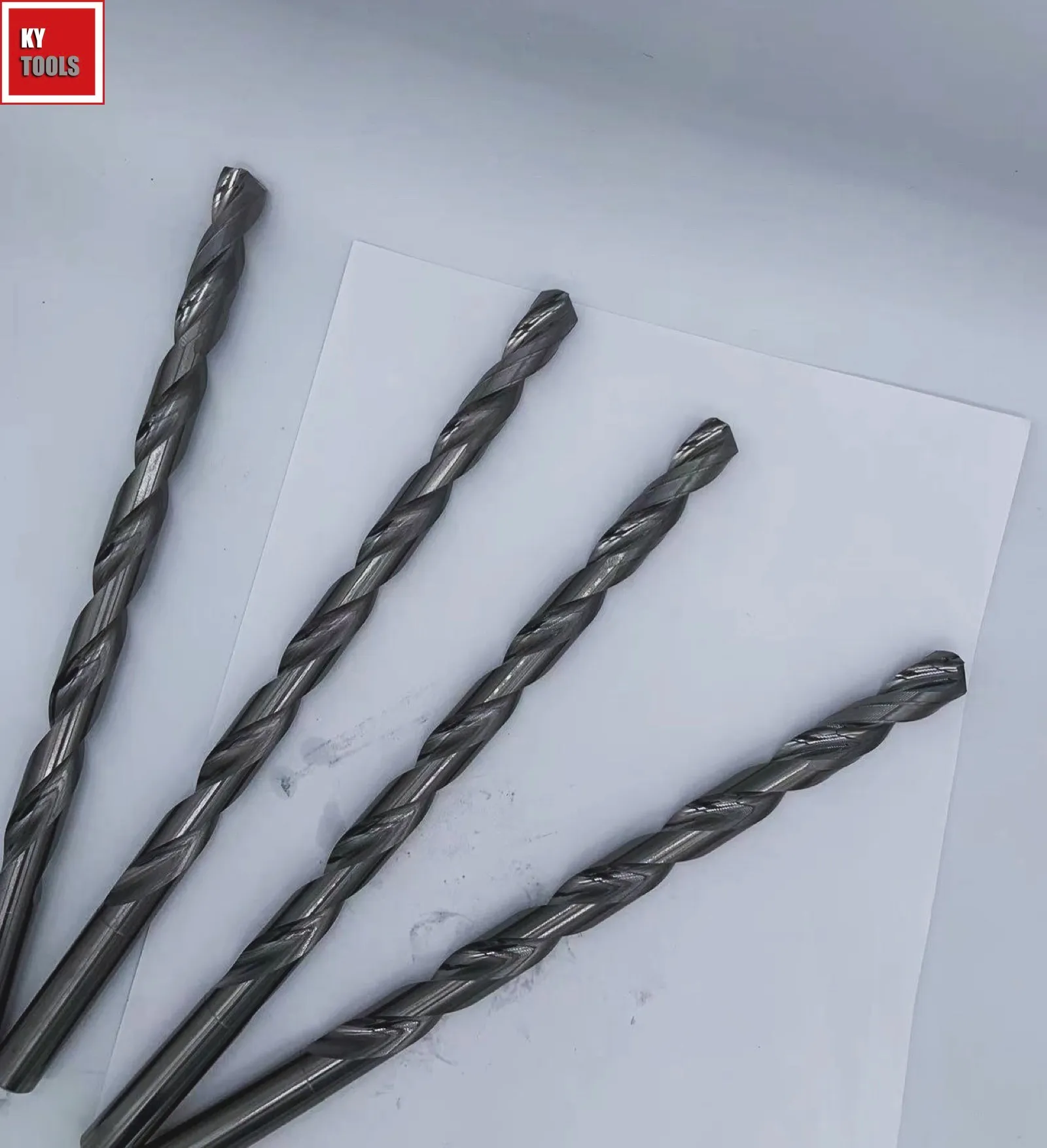

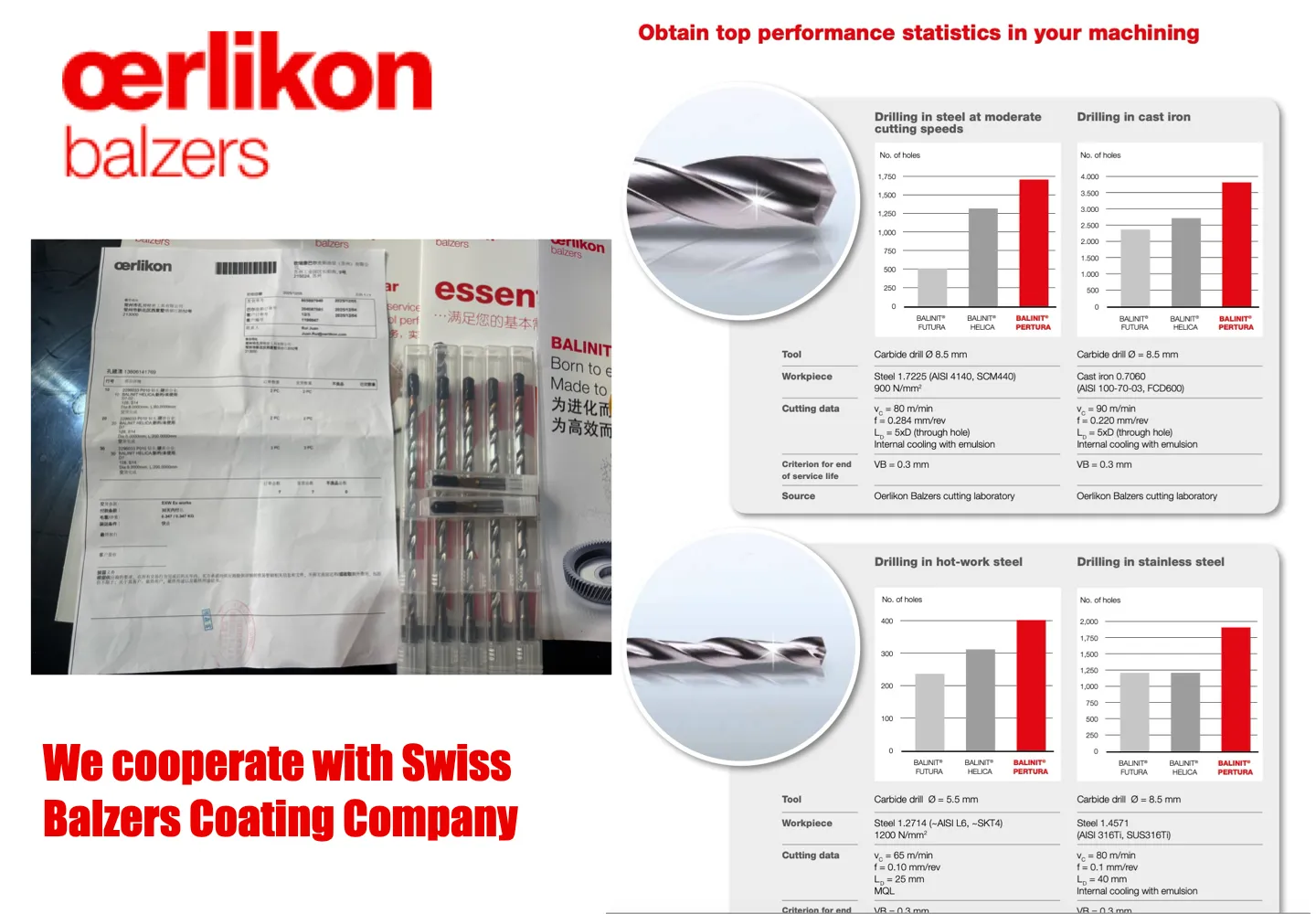

Flexible Coating Routes+TiSiN Coatings are sourced through a Sandvik1-acquired coating facility in China for standard production runs, and Oerlikon Balzers6 (Switzerland) for demanding applications...
-
Custom Manufacturing Support+We support custom diameter, length, point geometry, helix angle, coating, and tolerance requirements for project-based procurement and OEM programs.
Technical Specifications
Designed for repeatable quality across standard and custom drilling tasks
Depth Ratio Range
Coverage for short, medium, and longer drilling cycles with balanced rigidity and chip control.
Hole Tolerance
Tight process control supports stable dimensional accuracy and reduces secondary finishing workload.
Carbide Hardness
Micro-grain carbide matrix delivers wear resistance while preserving edge reliability under load.
Coating Options
Standard and premium coating routes are selected based on material group, cycle time, and tool life targets.
Point Geometry
Standard point angles plus custom point and web designs for specific workpiece and machine conditions.
Diameter Range
Comprehensive diameter coverage from micro drilling to larger hole-making applications.
Recommended Applications
Automotive Components
- Engine and transmission precision hole-making
- Batch drilling with stable cycle time control
- Steel and cast-iron structural parts
General Precision Machining
- Jigs, fixtures, and precision housings
- Consistent tolerance control in serial production
- Versatile geometry options for mixed materials
Mold & Die
- Tool steel and pre-hardened steel processing
- Stable entry performance and burr control
- Custom geometry support for difficult features
Why Choose KY TOOLS
| KY TOOLS | Intl. Brands Sandvik · Gühring · Walter |
Standard Carbide Suppliers | |
|---|---|---|---|
| MOQ | 1 piece minimum order | 1–10 pcs (distributor) | Usually higher minimum order |
| Overall Length | Up to 400mm (custom) | Up to catalog depth | <200mm typical |
| Tool Life | 20–30% longer in comparable conditions | Benchmark performance | Standard baseline |
| Hole Accuracy | -0.010mm to -0.000mm | ±0.005–0.010mm | ±0.02–0.05mm typical |

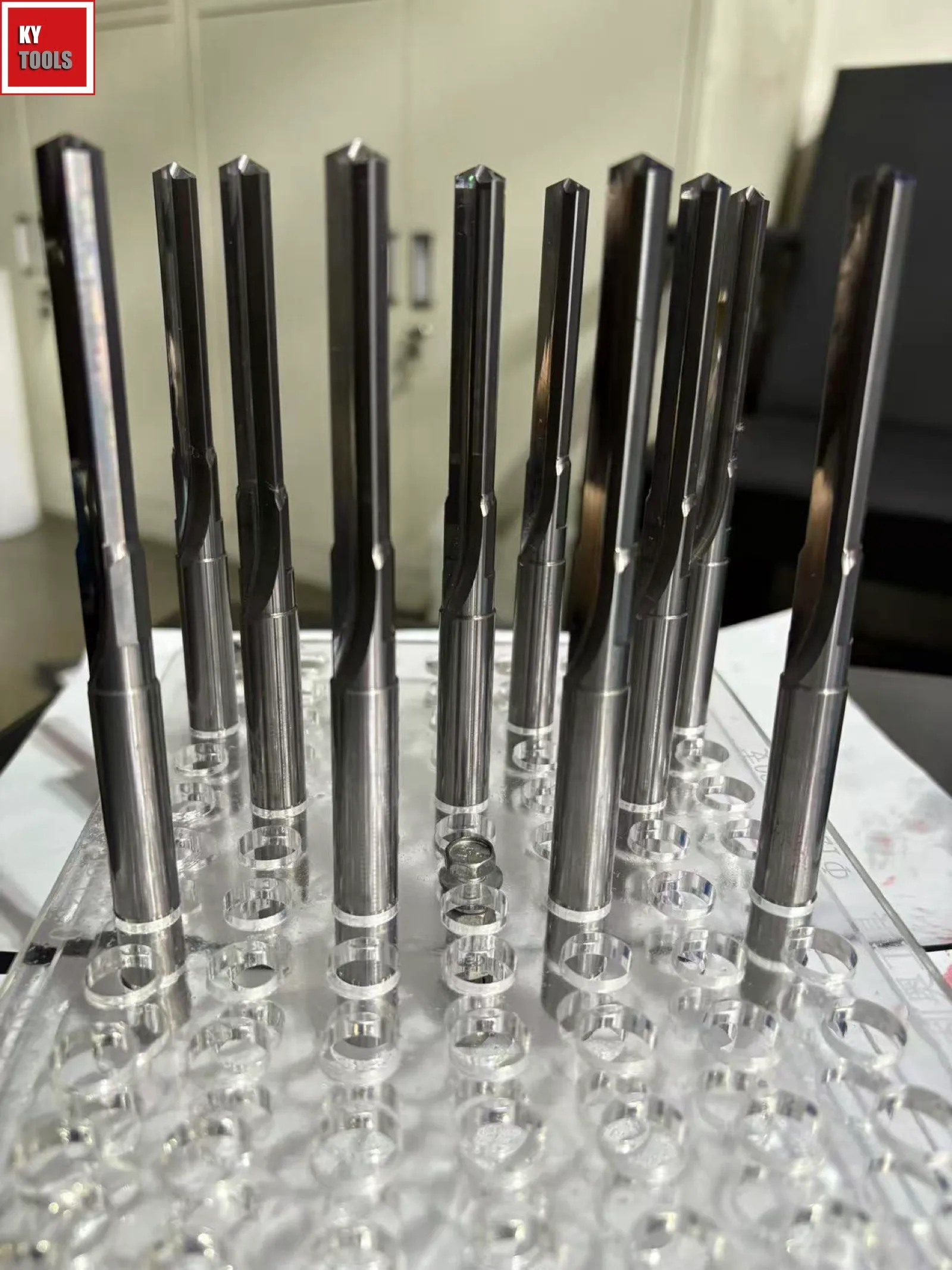

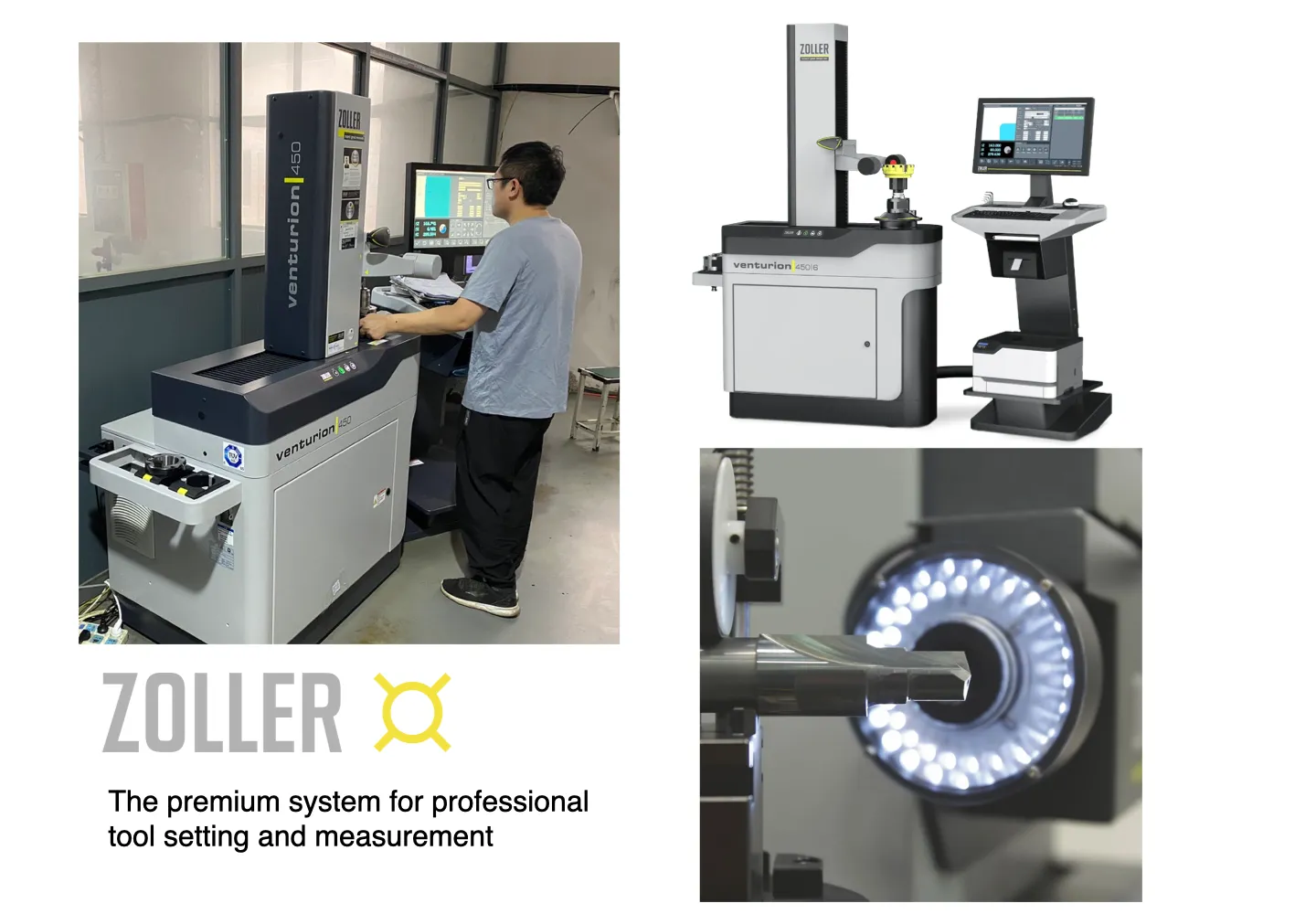

| Runout Control | < 0.003mm (Walter 5-axis CNC) | < 0.002mm | General industrial level |
